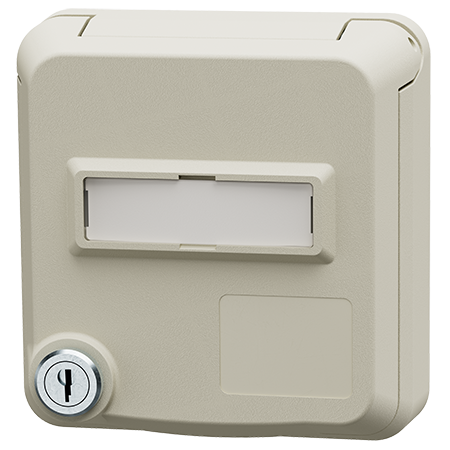

Cepex panel mounted socket with lock and labelling field, pearl white 4875

Name: Cepex panel mounted socket with lock and labelling field, pearl white
Brand: MENNEKES
SKU: 4875

Available from 01/07/2026

Ampere 16 A

Poles

Voltage

Clock position

screw terminals
with labelling field
with safety lock, two keys
cannot be dismantled when locked

on request with identical locks
with identical locks: Part no + index ZA
also suitable for installation in cable ducts and columns

Part no.4875
EAN4015394314899
Std. Pack. 8 Qty.

Technical specifications

Cepex panel mounted socket with lock and labelling field, pearl white 4875

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP54
Shutter	No
Weight	263 g

Datasheets & Downloads

Cepex panel mounted socket with lock and labelling field, pearl white 4875

Product infoCepex panel mounted socket with lock and labelling field, pearl white 4875 PDF, 443 KB

Dimensional drawing portraitCepex panel mounted socket with lock and labelling field, pearl white 4875 PNG, 125 KB

Dimensional drawing landscape formatCepex panel mounted socket with lock and labelling field, pearl white 4875 PNG, 199 KB

Directives

Cepex panel mounted socket with lock and labelling field, pearl white 4875

REACh

RoHS

Appropriate products

Cepex panel mounted socket with lock and labelling field, pearl white 4875 with IP54

Plug PowerTOP® Xtra G

Part no. 13363

Protection type: IP54
Ampere: 16 A
Poles: 5 p
Voltage: 400 V
Connection technology: Screw terminals, ErgoCONTACT®

Plug PowerTOP® Xtra R with ErgoCONTACT

Part no. 13563

Protection type: IP54
Ampere: 16 A
Poles: 5 p
Voltage: 400 V
Connection technology: Screw terminals, ErgoCONTACT®

Flush-mounted box

Part no. 41401

Plug PowerTOP® Xtra S with SafeCONTACT

Part no. 13522

Protection type: IP54
Ampere: 16 A
Poles: 5 p
Voltage: 400 V
Connection technology: Screwless - SafeCONTACT

Plug PowerTOP® Xtra with ErgoCONTACT

Part no. 13510

Protection type: IP54
Ampere: 16 A
Poles: 5 p
Voltage: 400 V
Connection technology: Screw terminals, ErgoCONTACT®

Appropriate accessories

Cepex panel mounted socket with lock and labelling field, pearl white 4875

Cepex masking frames, Pure white

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Cepex masking frames, pearl white

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Cepex masking frames, light grey

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets

Cepex masking frame, Pure white

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets
