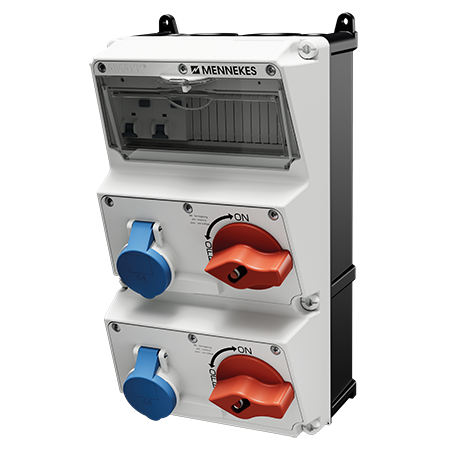

MENNEKES AMAXX® combination unit 938618

AMAXX® combination unit 938618

  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • The DUO locking mechanism prevents any contact with live socket parts while the device is turned on.
  • Devices for disconnecting all live conductors (including the neutral conductor) per output.
  • Part no.938618
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 938618

CEE 16 A, 3 p, 230 V 2
Fusing
  • 2 RCBO 16A 2p C 10kA IFN= 0,03 A
Pre-fuse max. 100 A
InA 16 A
RDF 1
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 4050 g

Directives

AMAXX® combination unit 938618
