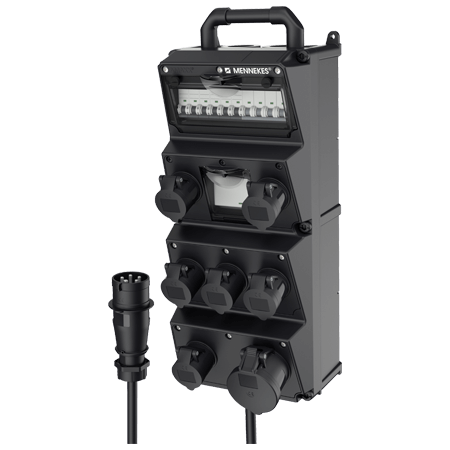

AMAXX® combination unit 944420SW
CEE 32 A, 5 p, 400 V
CEE 16 A, 3 p, 230 V
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
AMAXX® combination unit 944420SW
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| CEE 16 A, 3 p, 230 V | 6 |
| Fusing |
|
| Pre-fuse max. | 32 A |
| InA | 32 A |
| RDF | 0.9 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Plastic |
| Weight | 7600 g |
| Height | 520 mm |
| Width | 225 mm |
