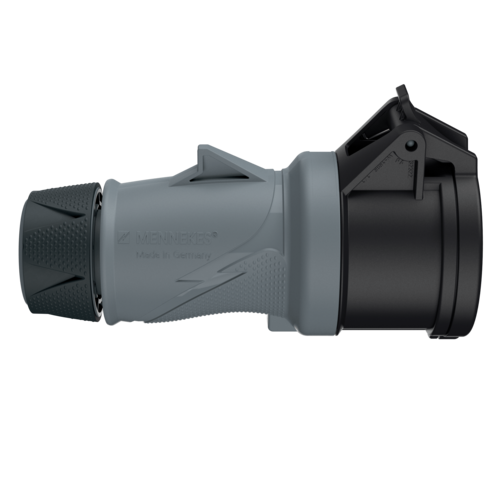

Connector PowerTOP Xtra R with ErgoCONTACT 14585
All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- X-CONTACT®
- ergonomic enclosure design with nubbed grip zones
- highly heat resistant contact carrier
- nickel plated contacts
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
- the PowerTOP® Xtra R connector replaces the AM-TOP connector 2027
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP Xtra R with ErgoCONTACT 14585
| Ampere | 32 A |
|---|---|
| Poles | 5 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP54 |
| Weight | 440 g |
| Certifications |
VDE EAC |
