MENNEKES

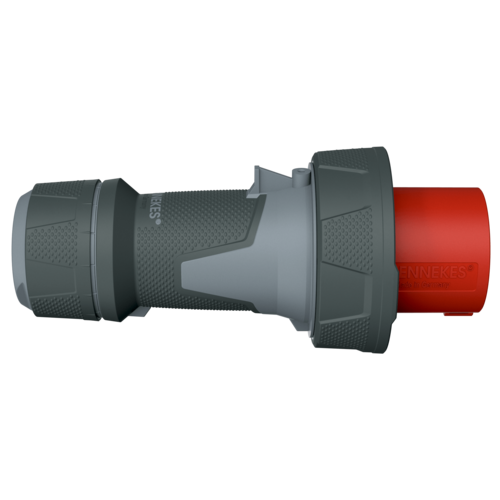

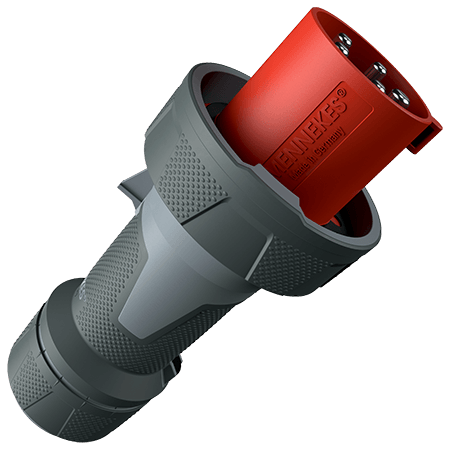

MENNEKES Plug PowerTOP® Xtra R 13212
MENNEKES Plug PowerTOP® Xtra R 13212 images3d

Plug PowerTOP® Xtra R 13212

  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13212
  • EAN4015394238829
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP® Xtra R 13212

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 880 g
Certifications VDE
CQC

Directives

Plug PowerTOP® Xtra R 13212

Appropriate products

Plug PowerTOP® Xtra R 13212 with IP67

MENNEKES Connector PowerTOP® Xtra 14212

Connector PowerTOP® Xtra

Part no. 14212

  • Protection type: IP67
  • Ampere: 63 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals

Appropriate accessories

Plug PowerTOP® Xtra R 13212

MENNEKES Protective cover 40782

Protective cover

Part no. 40782

for watertight PowerTOP Xtra plugs, 63A
