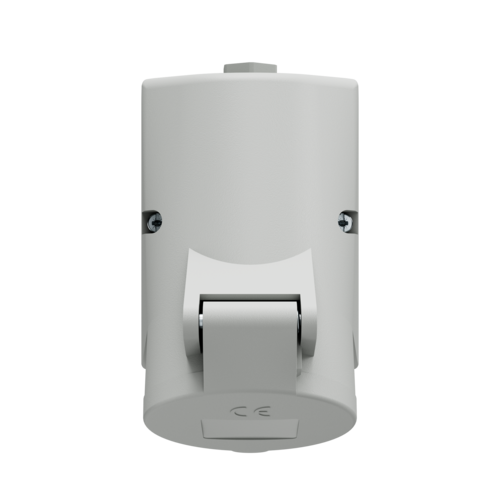

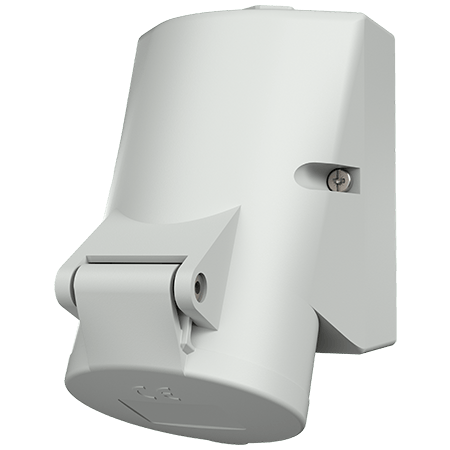

MENNEKES Wall mounted socket 767
MENNEKES Wall mounted socket 767 images3d

Wall mounted socket 767

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind cable entries (can be cut out) at bottom
  • in 4 pole version enclosure base can be turned 180°
  • Part no.767
  • EAN4015394005919
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted socket 767

Ampere 16 A
Poles 3 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 180 g
Certifications VDE
EAC

Directives

Wall mounted socket 767
