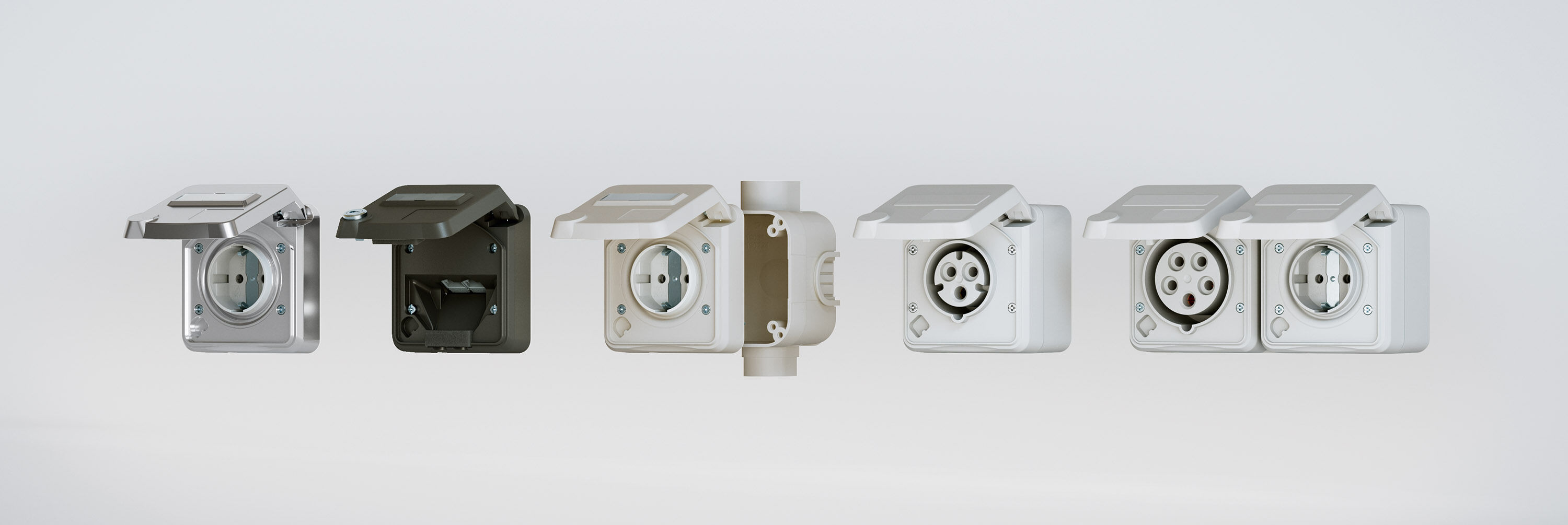

Cepex-Family - For spaces that demand more

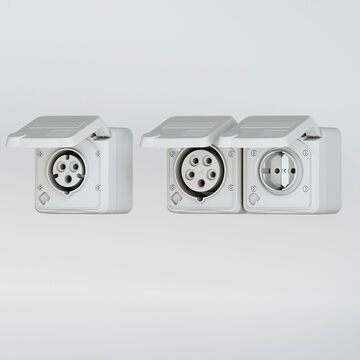

Variety in design and color
Our Cepex sockets are more than just technology. They are the result of decades of experience, thoughtful engineering, and uncompromising quality. Whether SCHUKO®, CEE, or data sockets – the combination of functionality and aesthetics makes Cepex the first choice for demanding installations. With flush mounted, surface mounted, and wall mounted variants, Cepex products offer maximum flexibility – even in tight installation spaces. The protection class IP54 ensure safety in damp or heavily used environments.
Cepex sockets offer thoughtful and flexible solutions for a wide range of applications. They are ideally suited for professional use in commercial, public, and technical environments. Whether in dry areas or under demanding conditions, the extensive range of our Cepex products enables safe, clean, and visually uniform installations. Our Cepex solutions stand out thanks to durable materials and smart design. Generous wiring spaces and flexible cable entries make installation easier, even where space is limited.
Application Areas

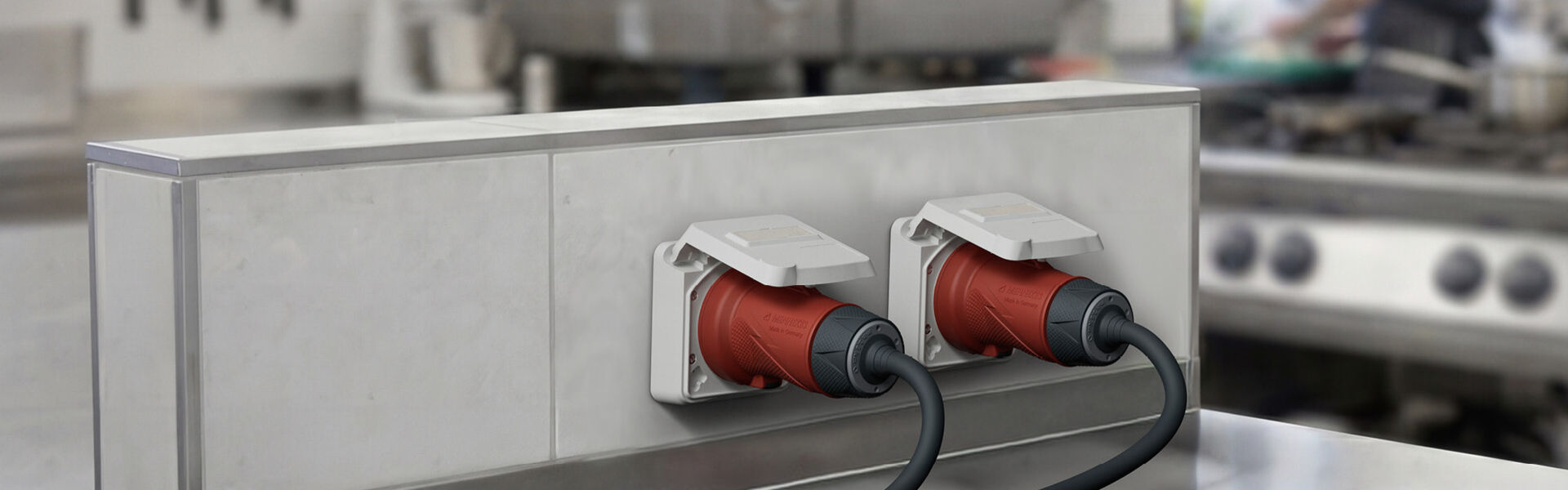

In production halls, where machines operate with precision. In large commercial kitchens, where every second counts. In laboratories, where accuracy protects lives. In medical facilities and hospitals, where trust is essential. And in modern office environments, where technology and design work in harmony — Cepex is at home everywhere.
The Cepex modular system for flush mounted installation boxes
One for all. Part no. 41401.
Based on the flush mounted installation box 41401 all desired Cepex flush mounted variants can be created by combining it with any Cepex panel mounted socket.
Example:
Cepex panel mounted socket 16 A, 5-pole, 400 V with labelling field part no. 4845
+ Flush mounted installation box part no. 41401
= Flush mounted socket

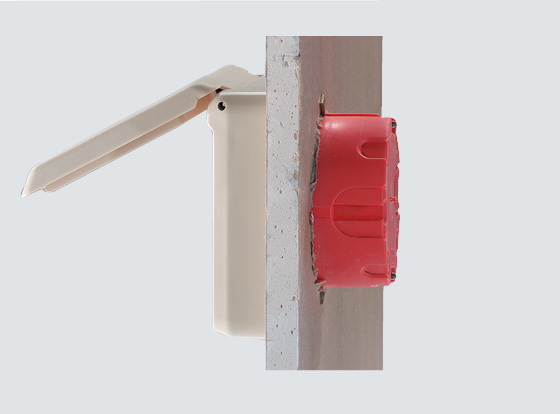

Hollow-Wall and Concrete Installation
The ideal combination: Cepex sockets 16 A, 3- to 5-pole, can be installed in hollow wall or concrete installation boxes (e.g., Kaiser). The 32 A versions are not suitable for hollow-wall installations due to their high withdrawal forces, unless reinforced hollow-wall solutions are used.
Selection Guide for flush mounted installation boxes
Our panel mounted sockets can be combined with the following hollow-wall and flush mounted installation boxes:
Cepex SCHUKO®:
Hollow‑Wall Installation Ø 68 mm „Hollow‑Wall Device Box“: Yes
Hollow‑Wall Installation Ø 74 mm "CEE 16 A Hollow‑Wall Box": No
Flush mounted / Concrete installation Ø 68 mm „Flush mounted box“: Yes
MENNEKES flush mounted installation box: Yes - Recommended
Cepex 16 A:
Hollow‑Wall Installation Ø 68 mm „Hollow‑Wall Device Box“: No
Hollow‑Wall Installation Ø 74 mm "CEE 16 A Hollow‑Wall Box": Yes
Flush mounted / Concrete installation Ø 68 mm „Flush mounted box“: No
MENNEKES flush mounted installation box: Yes - Recommended
Cepex 32 A:
Hollow‑Wall Installation Ø 68 mm „Hollow‑Wall Device Box“: No
Hollow‑Wall Installation Ø 74 mm "CEE 16 A Hollow‑Wall Box": No
Flush mounted / Concrete installation Ø 68 mm „Flush mounted box“: No
MENNEKES flush mounted installation box: Yes - Recommended
Cepex Data:
Hollow‑Wall Installation Ø 68 mm „Hollow‑Wall Device Box“: No
Hollow‑Wall Installation Ø 74 mm "CEE 16 A Hollow‑Wall Box": No
Flush mounted / Concrete installation Ø 68 mm „Flush mounted box“: No
MENNEKES flush mounted installation box: Yes - Recommended

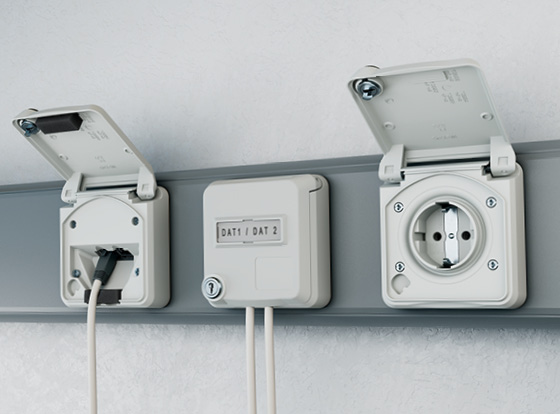

Installation in cable ducts and columns
In white aluminium, pure white, pearl white, deep black, and light grey, the Cepex range can be adapted to match the common colours of various cable ducts and installation devices. With Cepex, you choose a modern socket solution that perfectly combines safety, functionality, and a uniform design.

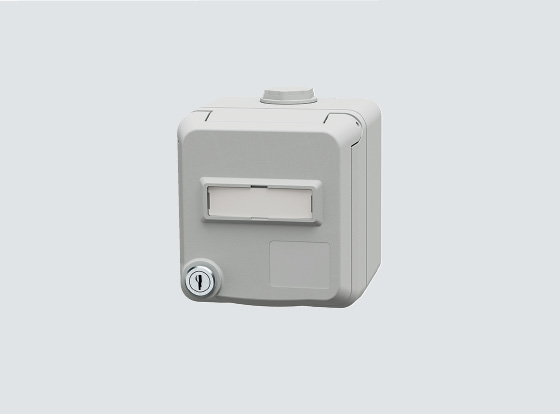

CEE-Cepex-wall mounted sockets
The large wiring space provides room for supply lines up to 6 mm². The bottom part of the enclosure can be turned by 180 degrees, which allows cable insertion from above or below without additional work. Protection type IP54 (dust and splash water protected) makes the wall mounted sockets safe for a wide range of applications. Additional membranes are available inside the enclosure.
Features of the Cepex wall mounted socket:
- Membrane cable gland: All types are equipped with a membrane gland fitting M 25 for two cables 3-9 mm. Simply push in the cable – done!
- Metric cable gland: A metric cable gland M 25 / 2 x 8 is optionally available.
- Rotatable: The bottom part of the enclosure can be turned by 180 degrees, which allows cable insertion from above or below without additional work.

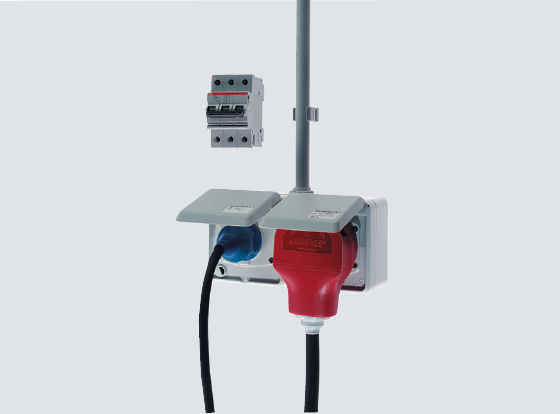

Cepex double socket
A frequently chosen socket combination: 16 A CEE and SCHUKO®. When connecting this combination via a single supply line, a 3‑pole circuit breaker is mandatory.

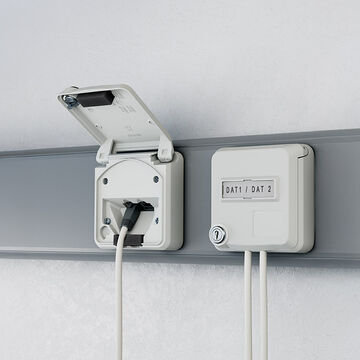

Cepex data port sockets
Versatile and reliable: Our Cepex data port sockets are perfect for use in control stations, storage areas, laboratories, airports, and production lines.
They operate using standard patch cables. They can be combined with Cepex sockets, CEE, and SCHUKO®. Whether Surface mounted, flush mounted, or installed in cable ducts – these sockets always fit.
1. Lockable even with connected cables. The safety lock prevents unauthorized access.
2. Protection type IP54 with closed cover or with plug inserted.
3. Suitable for double RJ45 ports, Cat. 3 to Cat. 7 and manufacturerindependent RJ45 Keystones. Openings according to IEC 60603-7.
