MENNEKES

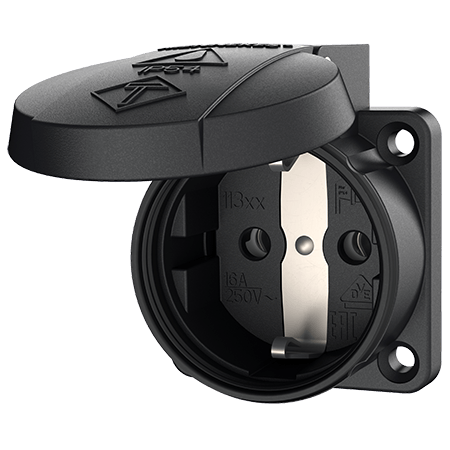

MENNEKES Panel mounted socket SCHUKO® 11322

Panel mounted socket SCHUKO® 11322

Ampere 16 A
  • for portable use
  • with front gasket
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11322
  • EAN4015394288862
  • Std. Pack. 100 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Technical specifications

Panel mounted socket SCHUKO® 11322

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Enclosure material Plastic
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 61 g
Certifications VDE

Directives

Panel mounted socket SCHUKO® 11322

Appropriate products

Panel mounted socket SCHUKO® 11322 with IP54

MENNEKES Plug SCHUKO® 152072

Plug SCHUKO®

Part no. 152072

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 2 p+PE
  • Voltage: 230 V
  • Connection technology: Screw terminals
