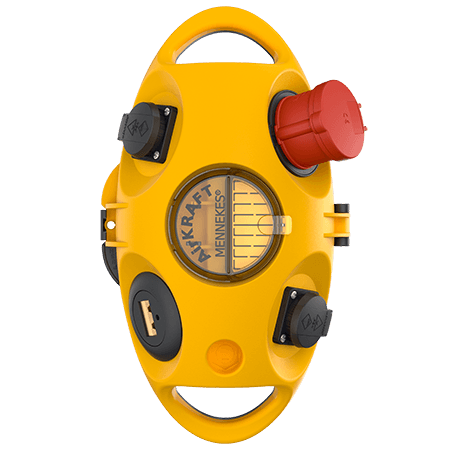

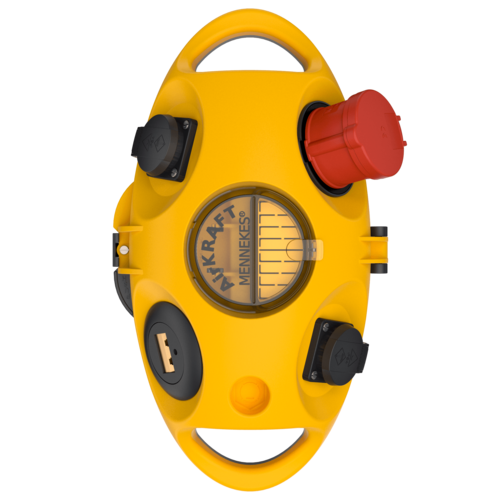

MENNEKES AirKRAFT® combination unit 94555GE
MENNEKES AirKRAFT® combination unit 94555GE images3d

AirKRAFT® combination unit 94555GE

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • Part no.94555GE
  • EAN4015394195184
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AirKRAFT® combination unit 94555GE

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Data port sockets 1 RJ45 double data port cat.6, 8/8
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP20
Enclosure material Plastic
Weight 1683 g
Certifications EAC
Storage receptacle combination B

Directives

AirKRAFT® combination unit 94555GE

Appropriate accessories

AirKRAFT® combination unit 94555GE

MENNEKES Pneumatic connection 41442

Pneumatic connection

Part no. 41442

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Set of chains 106060

Set of chains

Part no. 106060

for fixing AirKRAFT® to the ceiling

MENNEKES Pneumatic connection 208620

Pneumatic connection

Part no. 208620

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Pneumatic connection 208621

Pneumatic connection

Part no. 208621

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442
