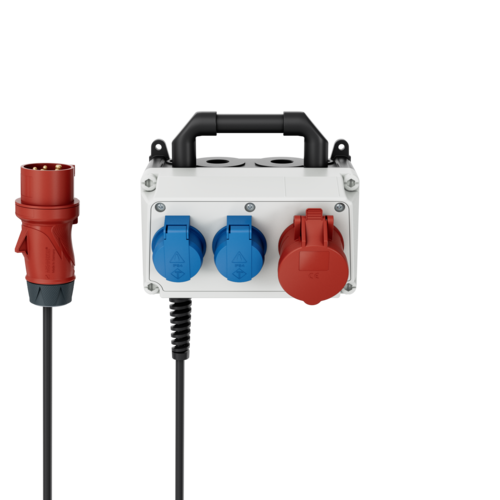

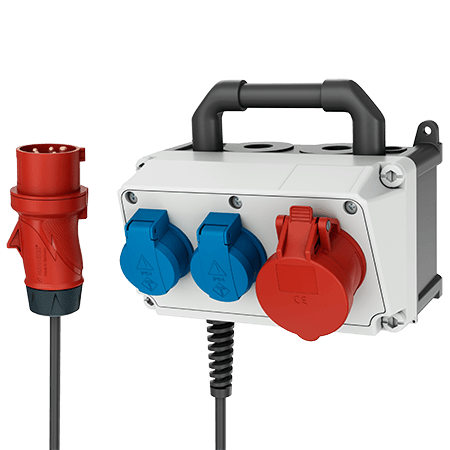

MENNEKES AMAXX® combination unit 910032
MENNEKES AMAXX® combination unit 910032 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 910032

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • Part no.910032
  • EAN4015394240495
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 910032

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Connection/feeder cable
  • 1.5 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type IP44
Enclosure material Plastic
Weight 2300 g
Height 130 mm
Width 225 mm
Storage receptacle combination B

Videos

AMAXX® combination unit 910032

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 910032

Appropriate accessories

AMAXX® combination unit 910032

MENNEKES Cable gland 990610

Cable gland

Part no. 990610

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609
