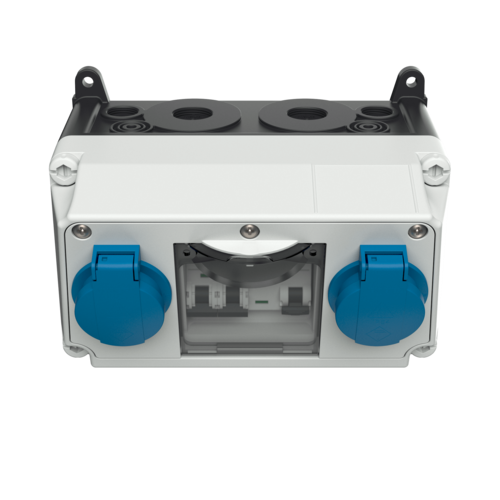

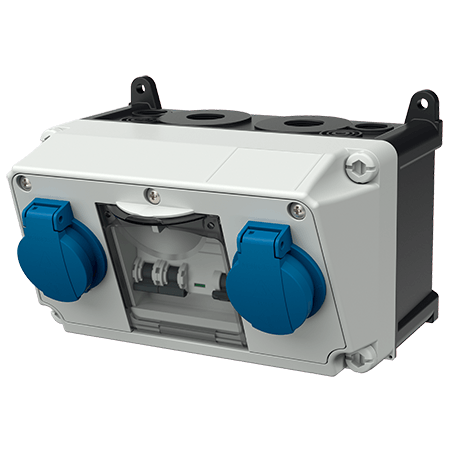

AMAXX® combination unit 910205

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

franz./belg. Norm
  • pre-wired for installation
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.910205
  • EAN4015394264675
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 910205

French/Belgian standard 2
  • 1 RCD 25 A, 2 p, 0.03 A
  • 2 MCB´s 16 A, 1 p+N, C
Pre-fuse max. 25 A
InA 25 A
Connection/feeder cable
  • for 1 cable up to 3 x 6 mm²
Protection type IP44
Enclosure material Plastic
Weight 1165 g
Height 130 mm
Width 225 mm
Storage receptacle combination D
