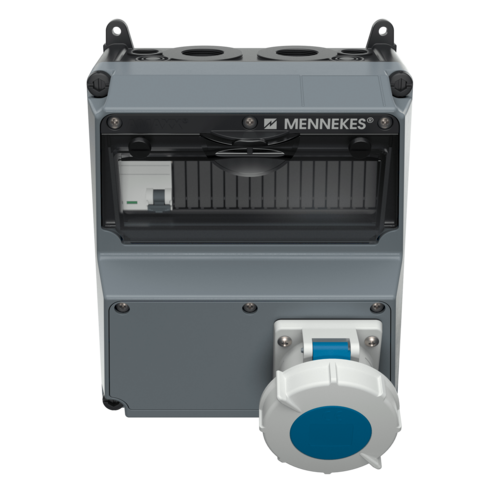

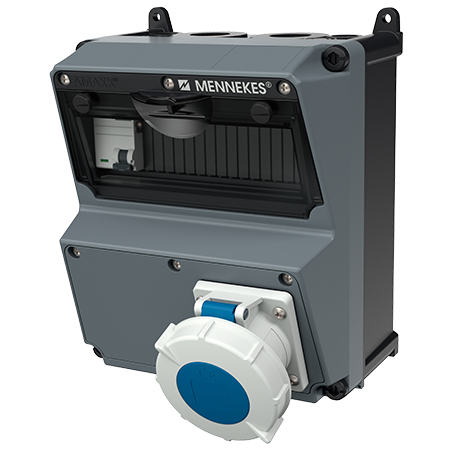

AMAXX® combination unit 921022

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 3 p, 230 V
  • with highly heat resistant contact carrier and nickel plated contacts
  • pre-wired for installation
  • enclosure front cover grey RAL 7000
  • fusing behind a transparent cover
  • Part no.921022
  • Std. Pack. 1 Qty.

Technical specifications

AMAXX® combination unit 921022

CEE 32 A, 3 p, 230 V 1
Fusing
  • 1 RCD 40 A, 2 p, 0.03 A
Connection/feeder cable
  • for 1 cable up to 3 x 10 mm²
Protection type IP 67
Enclosure material Plastic, high resistance to chemicals
Weight 2416 g
Height 260 mm
Width 225 mm
Storage receptacle combination D
