MENNEKES worldwide

MENNEKES

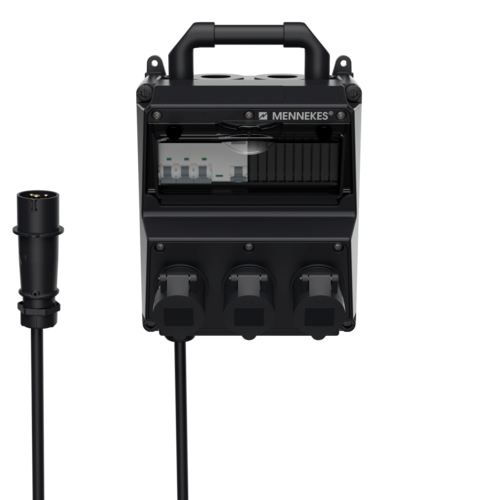

AMAXX® combination unit 921470SW

CEE 16 A, 3 p, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.921470SW
  • EAN4015394289463
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 921470SW

CEE 16 A, 3 p, 230 V 3
Fusing
  • 1 RCD 25 A, 2 p, 0.03 A
  • 3 MCB´s 16 A, 1 p+N, C
Connection/feeder cable
  • 1 m H07RN-F3G2,5 with CEE-plug 16 A, 3 p, 230 V
Protection type IP 44
Enclosure material Plastic
Weight 3226 g
Height 260 mm
Width 225 mm
Storage receptacle combination D
