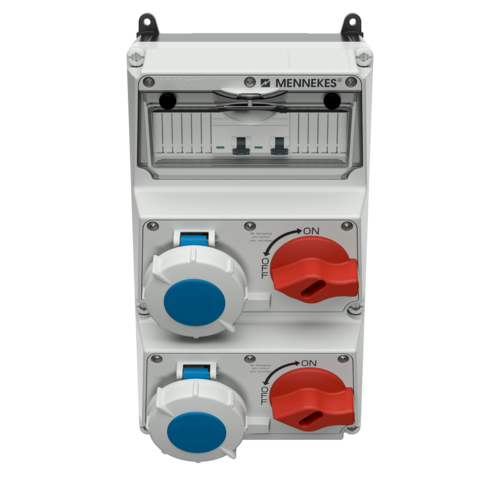

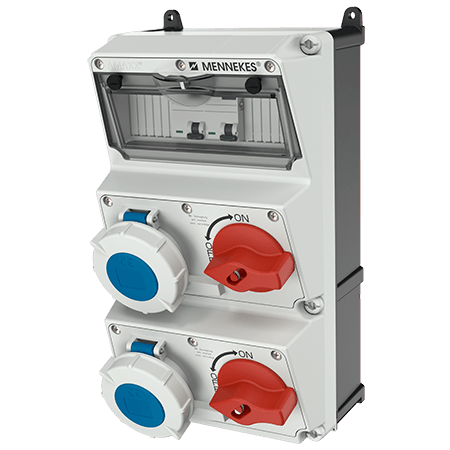

AMAXX® combination unit 934285

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

  • switched
  • with mechanical DUO-interlock
  • protected by 2 RCD´s 30 mA
  • Part no.934285
  • Std. Pack. 1 Qty.

Technical specifications

AMAXX® combination unit 934285

Pre-fuse max. 32 A
InA 32 A
RDF 1
Protection type IP 67
Enclosure material Plastic
Weight 4300 g
Height 390 mm
Width 225 mm
Storage receptacle combination D
