With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

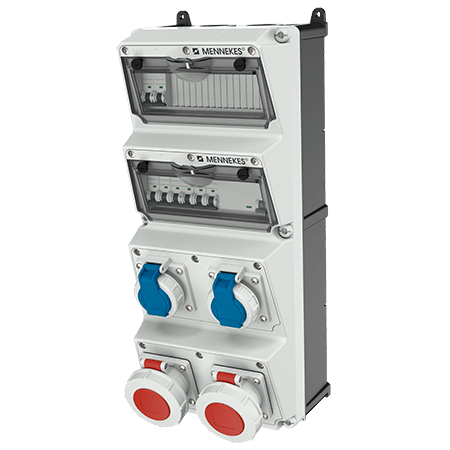

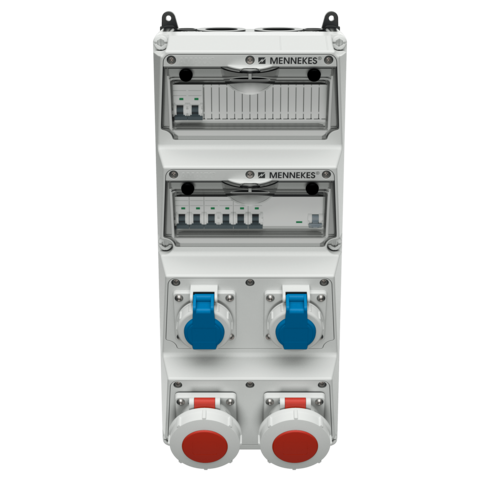

AMAXX® combination unit 940013
|CEE 16 A, 5 p, 400 V||2|
|SCHUKO® 16 A, 230 V||2|
|Pre-fuse max.||40 A|
|Protection type||IP 67|
|Declaration of Conformity||EAC|
|Storage receptacle combination||B|
