MENNEKES AMAXX® combination unit 940019
MENNEKES AMAXX® combination unit 940019 images3d

Please accept marketing-cookies to watch this video.

Video varieties

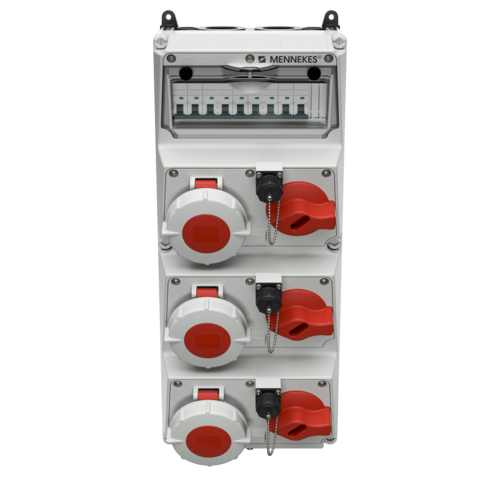

AMAXX® combination unit 940019

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 4 p, 400 V DUO
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • DUO sockets switched and interlocked, with highly heat resistant contact carrier and nickel plated contacts
  • Part no.940019
  • EAN4015394222347
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 940019

CEE 32 A, 4 p, 400 V DUO 3
Fusing
  • 3 MCB´s 32 A, 3 p, C
  • 3 monitoring sockets MS3102E 14S2S
  • 1 earth bolt M 10, V2A
Pre-fuse max. 100 A
InA 67 A
RDF 0.7
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
  • for 3 monitoring sockets up to 4 x 4 mm²
Protection type IP67
Enclosure material Plastic
Weight 7460 g
Height 520 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B

Videos

AMAXX® combination unit 940019

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 940019

Appropriate accessories

AMAXX® combination unit 940019

MENNEKES CombiTOWER® 15678

CombiTOWER®

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

MENNEKES Portable frame 15696

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® combination units with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

MENNEKES CombiTOWER® 15681

CombiTOWER®

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Cable gland 990609

Cable gland

Part no. 990609

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Cable gland 990611

Cable gland

Part no. 990611

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Membrane cable gland 990627

Membrane cable gland

Part no. 990627

black RAL 9005, incl. blanking plug, for cable from 16-28 mm

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm

MENNEKES CombiTOWER® 15679

CombiTOWER®

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER® 15680

CombiTOWER®

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish
