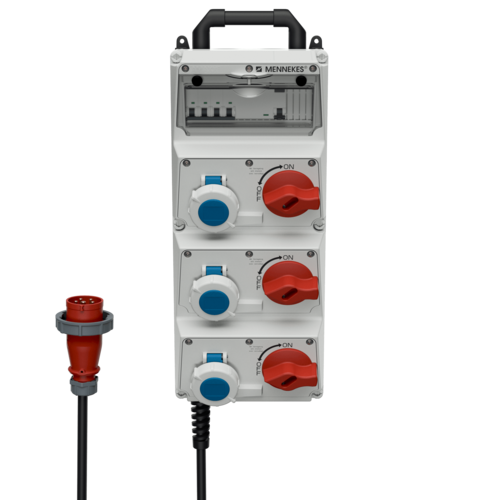

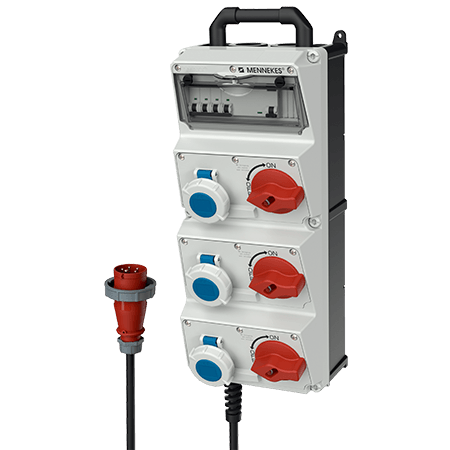

MENNEKES AMAXX® combination unit 940030
MENNEKES AMAXX® combination unit 940030 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 940030

CEE 16 A, 3 p, 230 V DUO
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.940030
  • EAN4015394224389
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 940030

CEE 16 A, 3 p, 230 V DUO 3
Fusing
  • 1 RCD 40A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p+N, C
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 4 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type IP67
Enclosure material Plastic
Weight 6998 g
Height 520 mm
Width 225 mm
Certifications EAC
Storage receptacle combination D

Videos

AMAXX® combination unit 940030

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 940030

Appropriate accessories

AMAXX® combination unit 940030

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm
