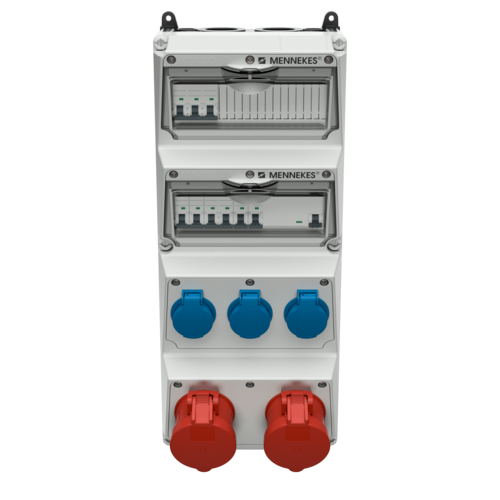

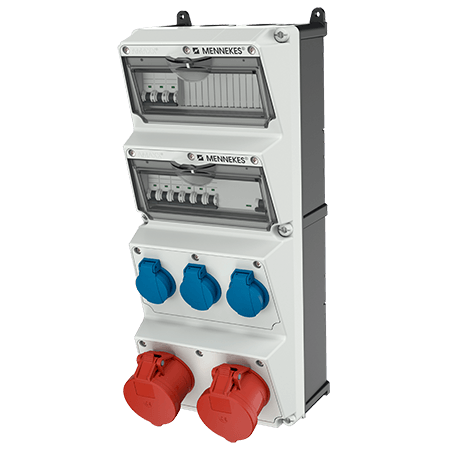

MENNEKES AMAXX® combination unit 940043
MENNEKES AMAXX® combination unit 940043 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 940043

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.940043
  • EAN4015394229148
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 940043

CEE 32 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 2 MCB´s 32 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 63 A
InA 48 A
RDF 0.6
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 6380 g
Height 520 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 940043

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 940043

Appropriate accessories

AMAXX® combination unit 940043

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm
