Show all Mobile combination units / Show all AMAXX® combination unit

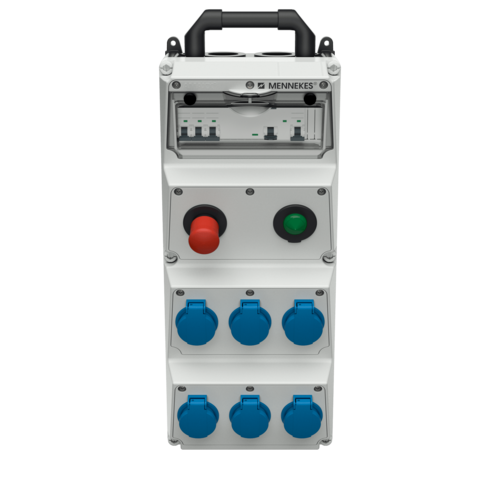

MENNEKES AMAXX® combination unit 941464
MENNEKES AMAXX® combination unit 941464 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 941464

French/Belgian standard
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.941464
  • EAN4015394289432
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 941464

French/Belgian standard 6
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 3 MCB´s 16 A, 1 p+N, C
  • 1 off button
  • 1 indicator light
Pre-fuse max. 100 A
InA 16 A
RDF 1
Protection type IP44
Enclosure material Plastic
Weight 5288 g
Storage receptacle combination D

Datasheets & Downloads

AMAXX® combination unit 941464

Product infoAMAXX® combination unit 941464 PDF, 155 KB
CAD data STPAMAXX® combination unit 941464 ZIP, 6 MB
CAD data 3D DWGAMAXX® combination unit 941464 ZIP, 26 MB
Mounting instructionsAMAXX® combination unit 941464 PDF, 2 MB
Dimensional drawing portraitAMAXX® combination unit 941464 PNG, 99 KB
Dimensional drawing landscape formatAMAXX® combination unit 941464 PNG, 102 KB

Videos

AMAXX® combination unit 941464

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 941464

REACh
RoHS

Appropriate accessories

AMAXX® combination unit 941464

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm

more
