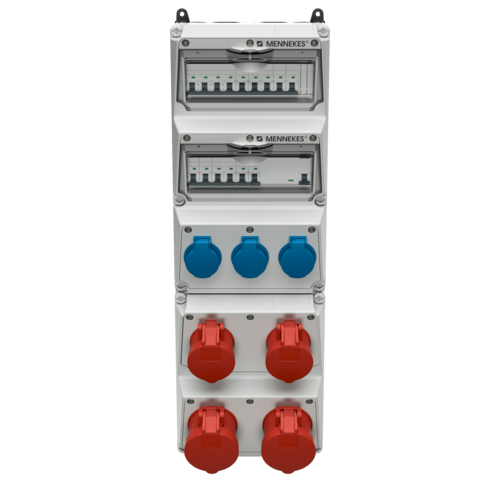

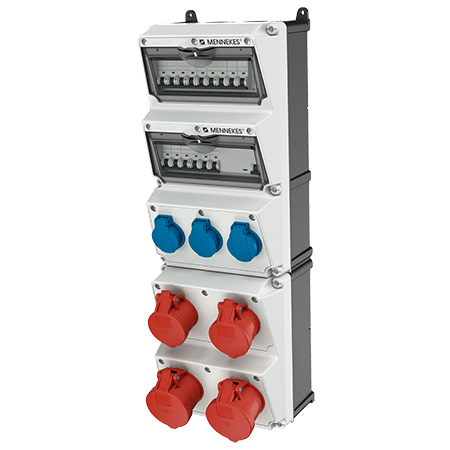

MENNEKES AMAXX® combination unit 950010
MENNEKES AMAXX® combination unit 950010 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 950010

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.950010
  • EAN4015394243281
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 950010

CEE 32 A, 5 p, 400 V 2
CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 2 MCB´s 32 A, 3 p, C
  • 2 MCB´s 16 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 63 A
InA 56 A
RDF 0.5
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 10440 g
Height 650 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX® combination unit 950010

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 950010

Appropriate accessories

AMAXX® combination unit 950010

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm

MENNEKES CombiTOWER® 15738

CombiTOWER®

Part no. 15738

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254.5 x 250 mm, suitable for AMAXX® combination units with 5 segments, bright finish

MENNEKES CombiTOWER® 15740

CombiTOWER®

Part no. 15740

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254 x 415 mm, bright finish

MENNEKES CombiTOWER® 15741

CombiTOWER®

Part no. 15741

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES CombiTOWER® 15739

CombiTOWER®

Part no. 15739

stainless steel, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254.5 x 250 mm, suitable for AMAXX® combination units with 5 segments, painted signal yellow (RAL 1003)
