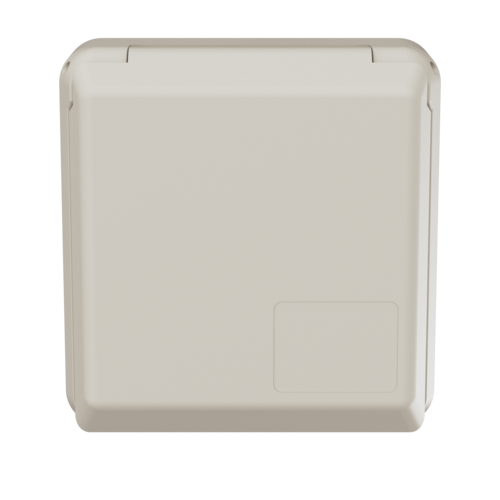

MENNEKES Cepex grounding type panel mounted socket 4901
MENNEKES Cepex grounding type panel mounted socket 4901 images3d

Cepex grounding type panel mounted socket 4901

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • for installation in cable ducts and collumns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4901
  • EAN4015394231189
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding type panel mounted socket 4901

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 140 g
Certifications EAC

Directives

Cepex grounding type panel mounted socket 4901

Appropriate accessories

Cepex grounding type panel mounted socket 4901

MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted sockets (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE sockets 16 A and 32 A and Cepex sockets SCHUKO®, can be combined with all Cepex panel mounted sockets

MENNEKES Cepex masking frame 41408

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets for horizontal installation of two sockets

MENNEKES Cepex masking frames 41406

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A sockets, for the installation of single appliances and for vertical combination of any number of sockets
