Show all Connectors / Show all Connector AM-TOP®

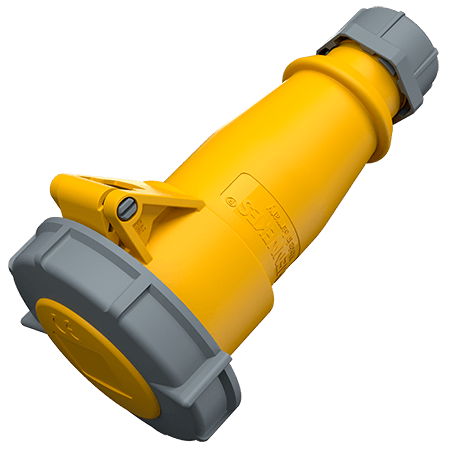

MENNEKES Connector AM-TOP® 539

Connector AM-TOP® 539

Ampere 16 A 32 A
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.539
  • EAN4015394003939
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP® 539

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 191 g
Certifications CQC
VDE

Datasheets & Downloads

Connector AM-TOP® 539

Product infoConnector AM-TOP® 539 PDF, 105 KB
Manufacturer‘s declarationConnector AM-TOP® 539 PDF, 37 KB
CAD data STPConnector AM-TOP® 539 ZIP, 991 KB
CAD data 3D DWGConnector AM-TOP® 539 ZIP, 2 MB
Mounting instructionsConnector AM-TOP® 539 PDF, 2 MB
Dimensional drawing portraitConnector AM-TOP® 539 PNG, 71 KB
Dimensional drawing landscape formatConnector AM-TOP® 539 PNG, 71 KB

Directives

Connector AM-TOP® 539

REACh
RoHS
