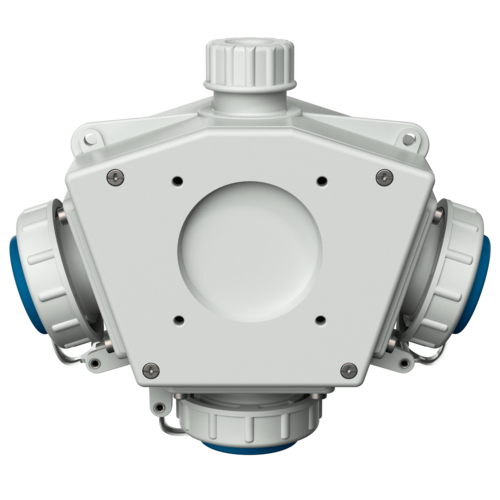

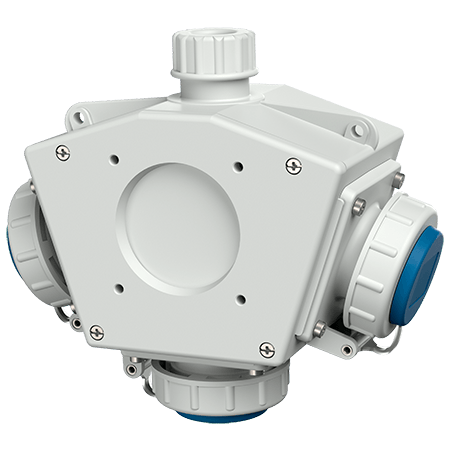

DELTA-BOX combination unit 10859

SCHUKO® 16 A, 230 V

pre-wired for installation
with internal strain relief and installed hanging hook

enclosure and insert made of AMAPLAST

Part no.10859
EAN4015394205463
Std. Pack. 5 Qty.

Technical specifications

DELTA-BOX combination unit 10859

SCHUKO® 16 A, 230 V	3
Connection/feeder cable	for 1 cable up to 3 x 10 mm²
Protection type	IP 68
Enclosure material	Plastic
Weight	850 g
Declaration of Conformity	EAC
Storage receptacle combination	D

Datasheets & Downloads

DELTA-BOX combination unit 10859

Product info DELTA-BOX combination unit 10859 PDF, 124 KB

CAD data STP DELTA-BOX combination unit 10859 ZIP, 1 MB

CAD data 3D DWG DELTA-BOX combination unit 10859 ZIP, 5 MB

Dimensional drawing portrait DELTA-BOX combination unit 10859 PNG, 1 KB

Dimensional drawing landscape format DELTA-BOX combination unit 10859 PNG, 1 KB

Instructions

Mounting instructions DELTA-BOX combination unit 10859 PDF, 1 MB

Appropriate accessories

DELTA-BOX combination unit 10859

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile combination units

Blanking flange

Part no. 41419

to close unused apertures, grey

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441
