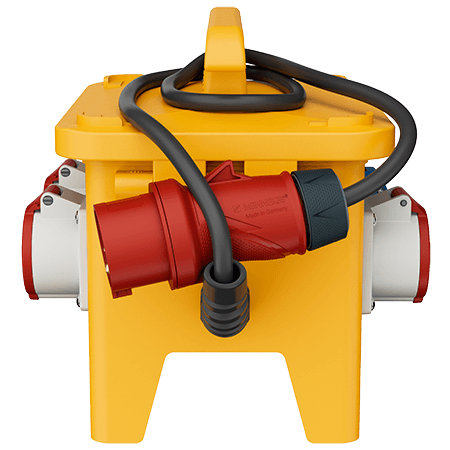

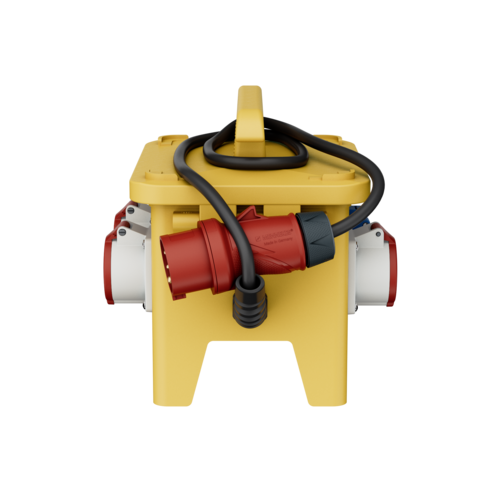

MENNEKES EverGUM combination unit 70416
MENNEKES EverGUM combination unit 70416 images3d

EverGUM combination unit 70416

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70416
  • EAN4015394160755
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 70416

CEE 16 A, 5 p, 400 V 3
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 7120 g
Length 306 mm
Height 288 mm
Width 230 mm
Certifications EAC
Storage receptacle combination B

Directives

EverGUM combination unit 70416
