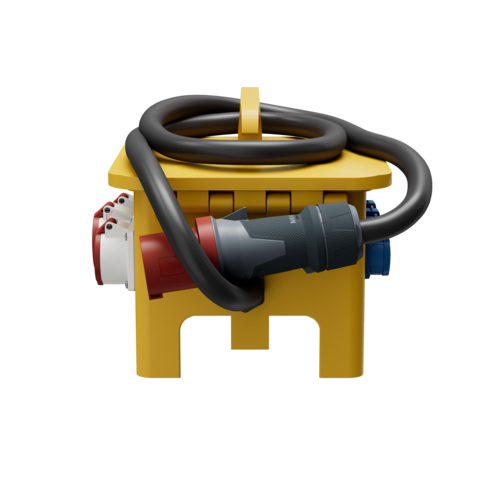

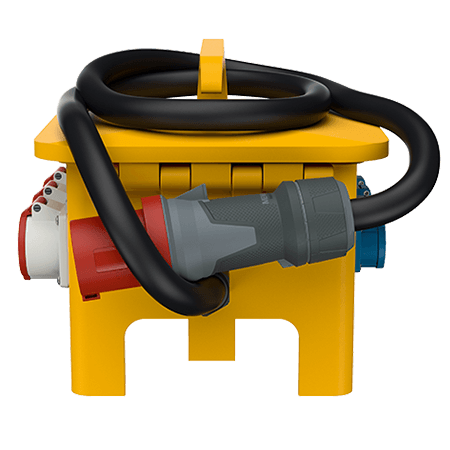

MENNEKES EverGUM combination unit 70442
MENNEKES EverGUM combination unit 70442 images3d

EverGUM combination unit 70442

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70442
  • EAN4015394144403
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM combination unit 70442

CEE 32 A, 5 p, 400 V 2
CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 2 MCB´s 32 A, 3 p, C
  • 2 MCB´s 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 63 A
InA 63 A
RDF 0.6
Connection/feeder cable
  • 3 m H07RN-F5G10 with CEE-plug 63 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 15520 g
Length 360 mm
Height 330 mm
Width 340 mm
Certifications EAC
Storage receptacle combination B

Directives

EverGUM combination unit 70442
