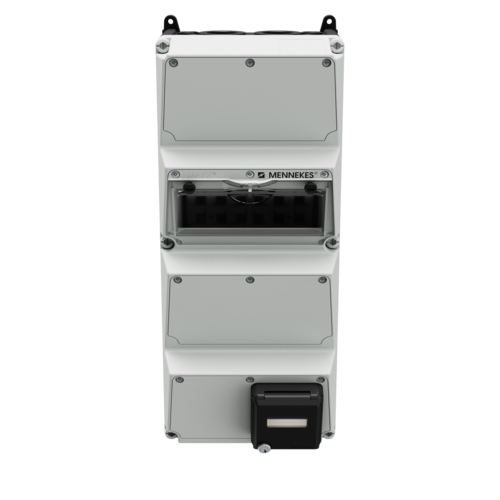

Industrial Network Distributor 25405

SCHUKO® 16 A, 230 V
  • Part no.25405
  • EAN4015394282242
  • Std. Pack. 1 Qty.

Technical specifications

Industrial Network Distributor 25405

SCHUKO® 16 A, 230 V 2
Data port sockets 1 Cepex data port receptacle (black RAL 9005) with 2 RJ45 right angle connector modules for direct connection of patch cables
Fitted with
  • Patch and mounting panel with threaded ground bolt M6 for the optional connection of an external ground conductor
Connection/feeder cable
  • 4 Velcro connectors for fastening installed components on the base plate
  • 2 screw fittings M 40 with multiple seal, 6 openings for a cable diameter of 6-9 mm including 5 each blanking plugs
  • 1 screw fitting M 20
  • 1 screw set
Protection type IP 44
Enclosure material Plastic
Weight 4350 g
Height 520 mm
Width 225 mm
Storage receptacle combination D
