MENNEKES Compact network distributor 25748
MENNEKES Compact network distributor 25748 images3d

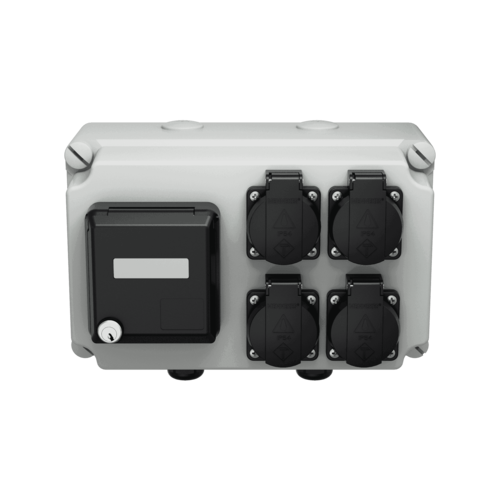

Compact network distributor 25748

SCHUKO® 16 A, 230 V
  • network enclosure made of AMAPLAST
  • top part electric grey RAL 7035
  • the network enclosure replaces Part no. 25715
  • Part no.25748
  • EAN4015394296232
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Compact network distributor 25748

SCHUKO® 16 A, 230 V 4
Connection/feeder cable
  • 2 M 25 at the top (closed)
  • 1 M 25 at the bottom (with cable gland)
  • 1 M 25 3 x 5-7 at the bottom (with cable gland)
  • (seal insert for 2 individual cables up to 8 mm Ø)
  • with terminal for 1 cable up to 5 x 4 mm²
Protection type IP44
Enclosure material Plastic
Weight 1800 g
Certifications EAC
Storage receptacle combination D

Directives

Compact network distributor 25748
