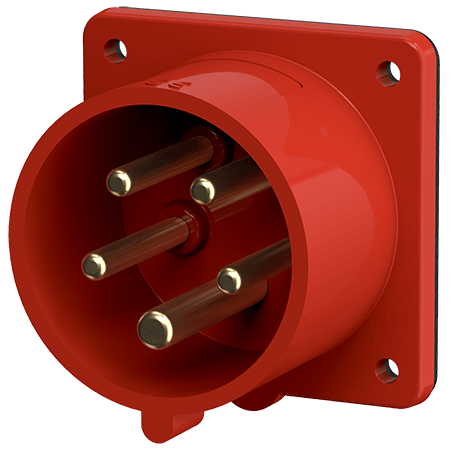

Panel mounted phase inverter inlet 854

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.854
  • EAN4015394180630
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted phase inverter inlet 854

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 127 g
Declaration of Conformity EAC
VDE (ÜG)

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information
