MENNEKES

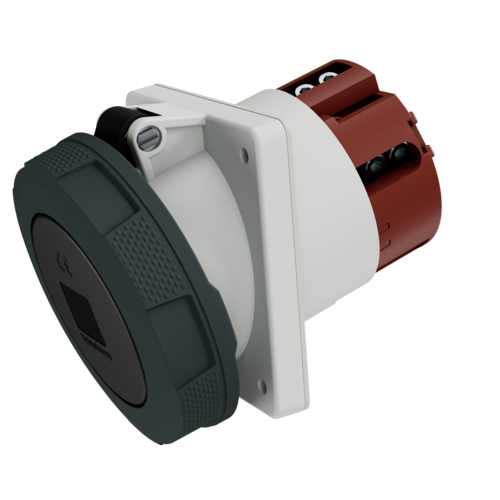

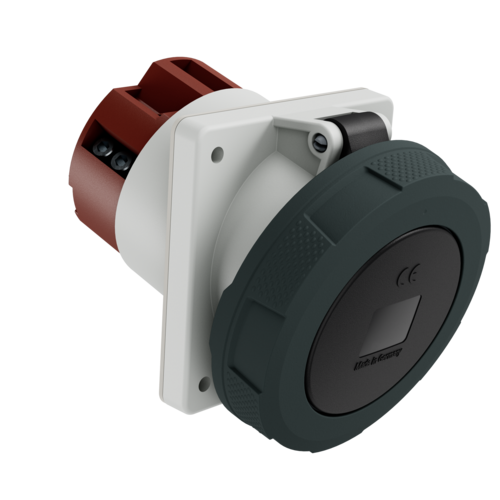

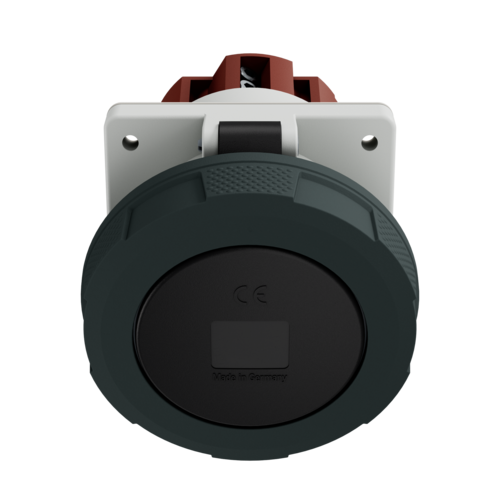

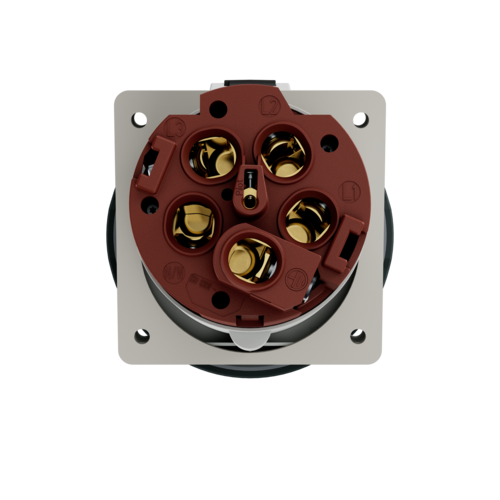

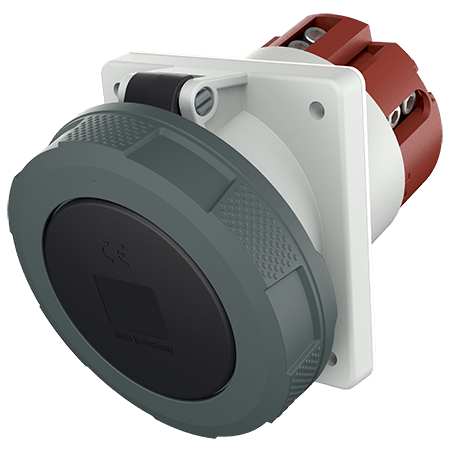

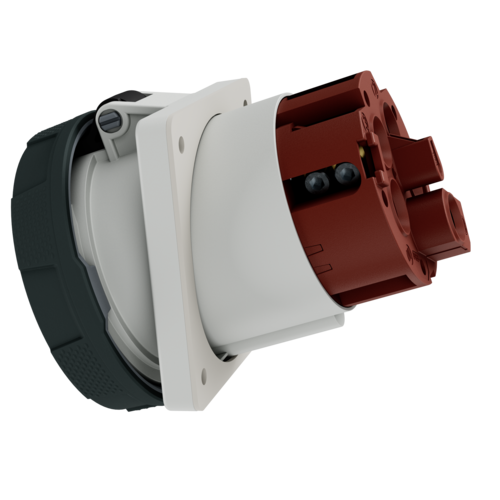

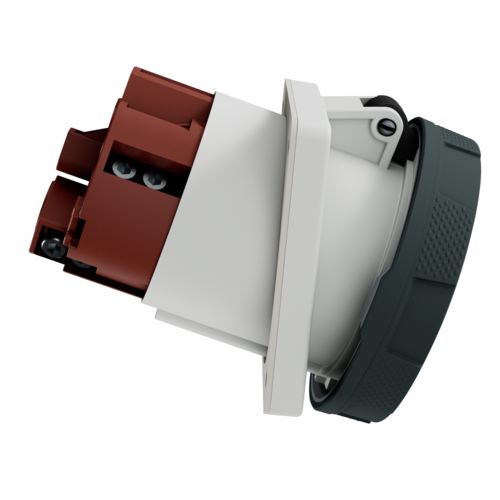

Panel mounted socket 2546P

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • with pilot contact
  • X-CONTACT®
  • highly heat resistant contact carrier
  • 15° inclination
  • Part no.2546P
  • EAN4015394193715
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted socket 2546P

Ampere 125 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT®
Protection type IP 67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 1050 g
Declaration of Conformity EAC (Zwangszulassung)
