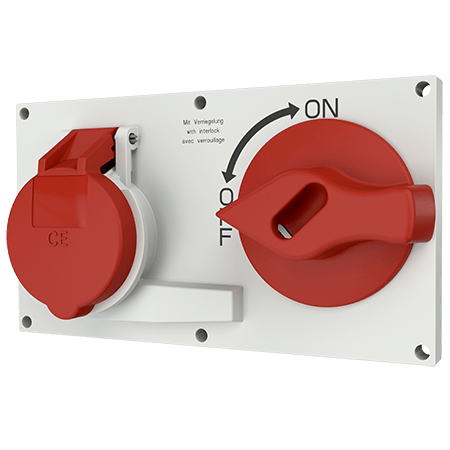

MENNEKES Panel mounted socket 7516

Panel mounted socket 7516

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.7516
  • EAN4015394228226
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted socket 7516

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 600 g
Certifications CQC

Datasheets & Downloads

Panel mounted socket 7516

Product infoPanel mounted socket 7516 PDF, 133 KB
Manufacturer‘s declarationPanel mounted socket 7516 PDF, 51 KB
CAD data STPPanel mounted socket 7516 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 7516 ZIP, 1 MB
Dimensional drawing portraitPanel mounted socket 7516 PNG, 54 KB
Dimensional drawing landscape formatPanel mounted socket 7516 PNG, 54 KB

Directives

Panel mounted socket 7516

REACh
RoHS
