MENNEKES Panel mounted socket SCHUKO® 11531
MENNEKES Panel mounted socket SCHUKO® 11531 images3d

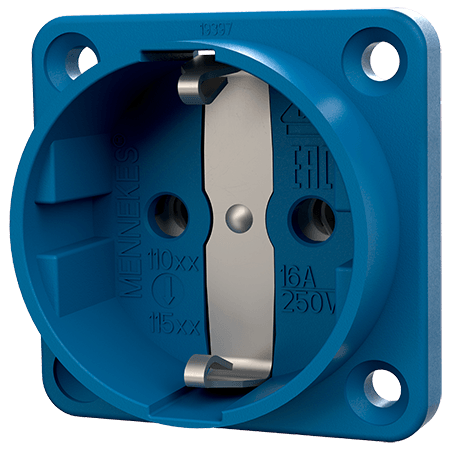

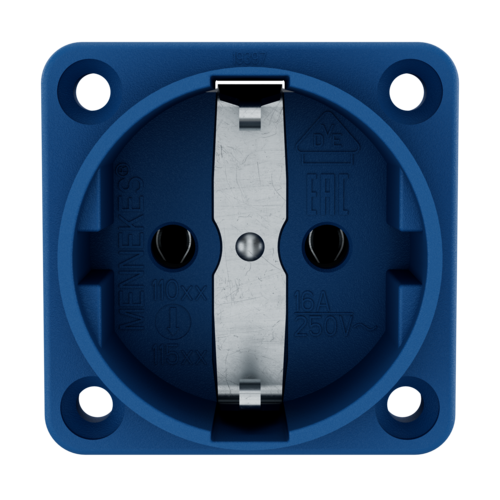

Panel mounted socket SCHUKO® 11531

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11531
  • EAN4015394195412
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 11531

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP20
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 31 g
Certifications VDE
EAC

Directives

Panel mounted socket SCHUKO® 11531

Appropriate accessories

Panel mounted socket SCHUKO® 11531

MENNEKES Base for wall mounted socket 10715

Base for wall mounted socket

Part no. 10715

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm
