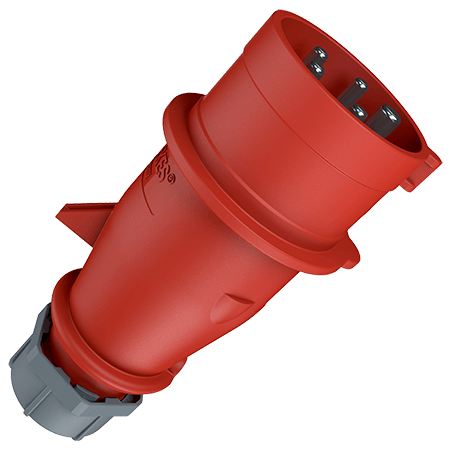

Phase inverter plug AM-TOP® 22812

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.22812
  • EAN4015394042761
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Phase inverter plug AM-TOP® 22812

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 264 g
Declaration of Conformity EAC
CQC

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information
