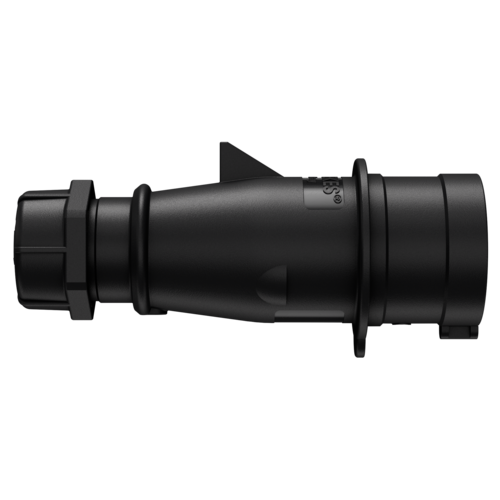

MENNEKES Plug AM-TOP® 22289ZC
MENNEKES Plug AM-TOP® 22289ZC images3d

Plug AM-TOP® 22289ZC

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.22289ZC
  • EAN4015394206699
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 22289ZC

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP44
Weight 153 g
Certifications EAC

Directives

Plug AM-TOP® 22289ZC

Appropriate accessories

Plug AM-TOP® 22289ZC

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
