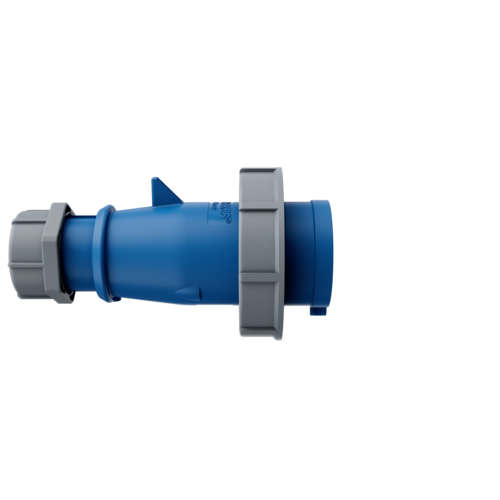

MENNEKES Plug AM-TOP® 2405
MENNEKES Plug AM-TOP® 2405 images3d

Plug AM-TOP® 2405

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2405
  • EAN4015394120308
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 2405

Ampere 32 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 349 g
Certifications EAC
CQC

Directives

Plug AM-TOP® 2405

Appropriate accessories

Plug AM-TOP® 2405

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
