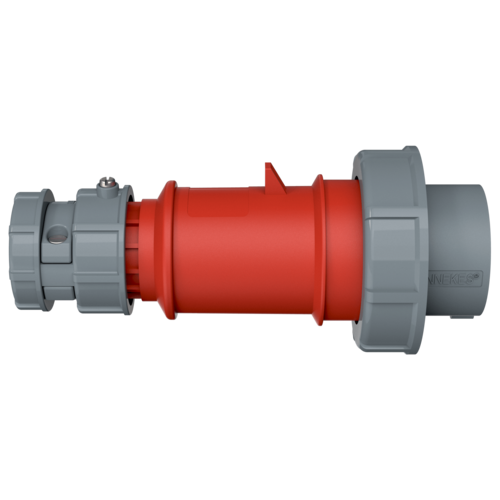

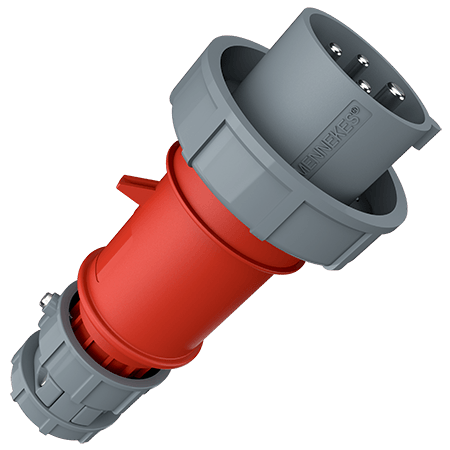

MENNEKES Plug PowerTOP® 3809
MENNEKES Plug PowerTOP® 3809 images3d

Plug PowerTOP® 3809

  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • Part no.3809
  • EAN4015394099383
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP® 3809

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 221 g
Certifications CQC
VDE

Directives

Plug PowerTOP® 3809

Appropriate accessories

Plug PowerTOP® 3809

MENNEKES Protective cover 40778

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets 16 A, 4 p

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP® plugs and connectors
