MENNEKES Plug PowerTOP® Xtra TM 24870
MENNEKES Plug PowerTOP® Xtra TM 24870 images3d

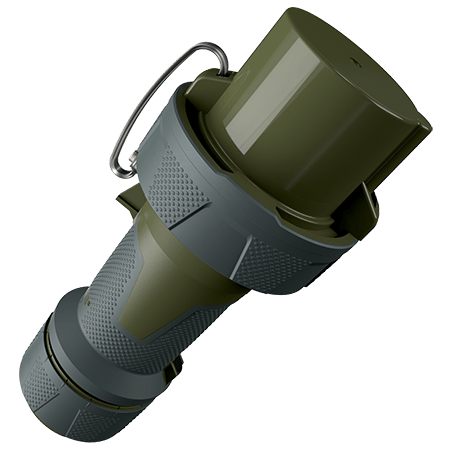

Plug PowerTOP® Xtra TM 24870

Ampere 63 A 125 A
  • screw terminals
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • with protective cap
  • (form CP)
  • Part no.24870
  • EAN4015394247890
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP® Xtra TM 24870

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 880 g
Certifications VDE
CB Zertifikat

Datasheets & Downloads

Plug PowerTOP® Xtra TM 24870

Product infoPlug PowerTOP® Xtra TM 24870 PDF, 147 KB
Manufacturer‘s declarationPlug PowerTOP® Xtra TM 24870 PDF, 37 KB
CAD data STPPlug PowerTOP® Xtra TM 24870 ZIP, 1 MB
CAD data 3D DWGPlug PowerTOP® Xtra TM 24870 ZIP, 3 MB
Mounting instructionsPlug PowerTOP® Xtra TM 24870 PDF, 1 MB
Dimensional drawing portraitPlug PowerTOP® Xtra TM 24870 PNG, 44 KB
Dimensional drawing landscape formatPlug PowerTOP® Xtra TM 24870 PNG, 44 KB

Directives

Plug PowerTOP® Xtra TM 24870

REACh
RoHS
