Show all Standard plugs / Show all Plug PowerTOP Xtra with ErgoCONTACT

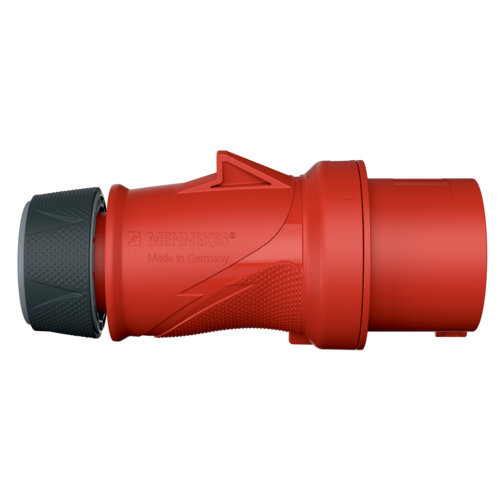

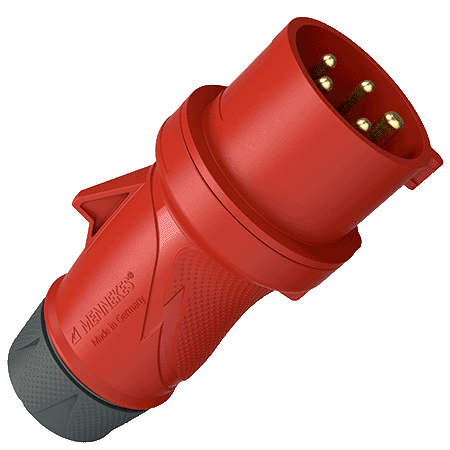

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13510
MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13510 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP® Xtra with ErgoCONTACT 13510

Across all versions and applications, PowerTOP® Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP® Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13510
  • EAN4015394289319
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP® Xtra with ErgoCONTACT 13510

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact standard
Protection type IP54
Weight 228 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Plug PowerTOP® Xtra with ErgoCONTACT 13510

Product infoPlug PowerTOP® Xtra with ErgoCONTACT 13510 PDF, 1 MB
Manufacturer‘s declarationPlug PowerTOP® Xtra with ErgoCONTACT 13510 PDF, 210 KB
CAD data STPPlug PowerTOP® Xtra with ErgoCONTACT 13510 ZIP, 3 MB
CAD data 3D DWGPlug PowerTOP® Xtra with ErgoCONTACT 13510 ZIP, 4 MB
Mounting instructionsPlug PowerTOP® Xtra with ErgoCONTACT 13510 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP® Xtra with ErgoCONTACT 13510 PNG, 188 KB
Dimensional drawing landscape formatPlug PowerTOP® Xtra with ErgoCONTACT 13510 PNG, 338 KB

Videos

Plug PowerTOP® Xtra with ErgoCONTACT 13510

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Plug PowerTOP® Xtra with ErgoCONTACT 13510

REACh
RoHS

Appropriate products

Plug PowerTOP® Xtra with ErgoCONTACT 13510 with IP54

MENNEKES Panel mounted socket 1473

Panel mounted socket

Part no. 1473

  • Protection type: IP44
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Connector PowerTOP® Xtra with ErgoCONTACT 14510

Connector PowerTOP® Xtra with ErgoCONTACT

Part no. 14510

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
MENNEKES Wall mounted socket DUOi 5611506G

Wall mounted socket DUOi

Part no. 5611506G

  • Protection type: IP44
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP® Xtra with ErgoCONTACT 13510

MENNEKES Set cable gland PowerTOP® Xtra G 42940

Set cable gland PowerTOP® Xtra G

Part no. 42940

rubberised cable gland , with protective grommet to prevent dirt from accumulating, suitable for PowerTOP® Xtra plugs and connetcor in 16 A

more
