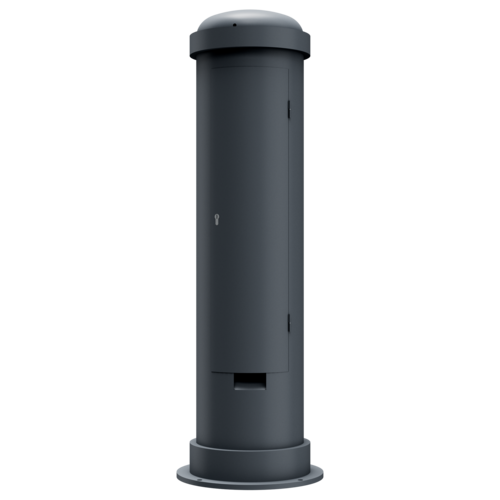

MENNEKES Power post 83722
MENNEKES Power post 83722 images3d

Power post 83722

CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • from steel tube
  • wall thickness 4.5 mm
  • hot-dip galvanised
  • wet painted
  • colour: anthracite
  • iron glitter DB 703
  • hinged supply aperture
  • with safety lock

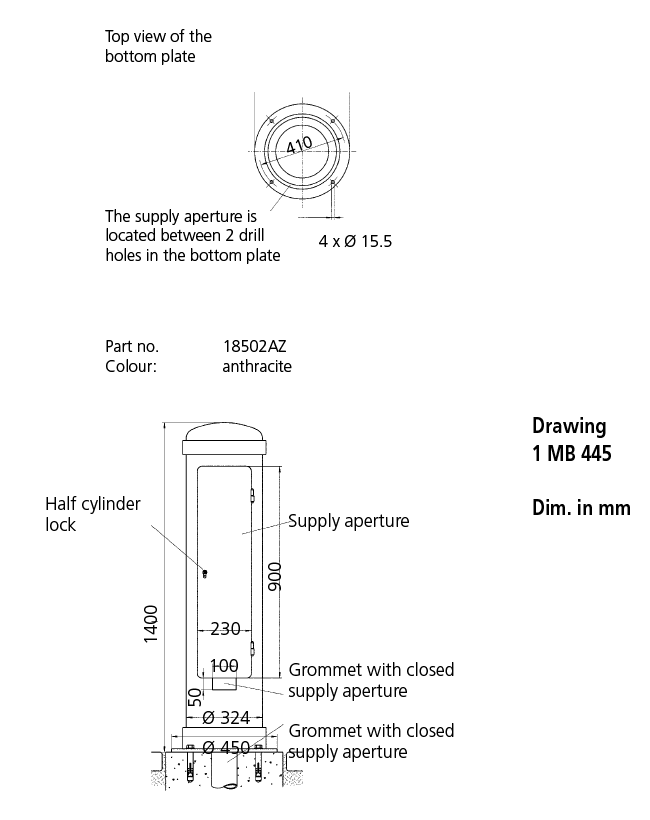

  • dimensions (H x Ø): 1400 x 325 mm (inside)
  • weight: approx. 100 kg
  • aperture at bottom: (H x W) 50 x 100 mm
  • fixing flange: Ø 450 mm
  • with 4 fixing holes 15 mm
  • for fixing to an existing fundament
  • Part no.83722
  • EAN4015394202172
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Power post 83722

CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 63 A
InA 63 A
RDF 0.55
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Metal
Weight 100000 g
Height 1400 mm
Diameter 325 mm
Certifications EAC
Storage receptacle combination C

Directives
