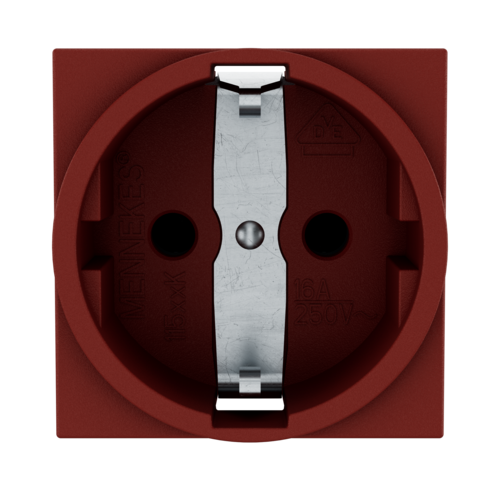

Snap-in socket SCHUKO® 11513K

Ampere 16 A
  • without hinged lid
  • with 3 plug-in terminals for connection of 1.5 – 2.5 mm²
  • for easy installation in a cable duct or an enclosure
  • for fixing on DIN rail with fixing rack 11254
  • Part no.11513K
  • EAN4015394200550
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Snap-in socket SCHUKO® 11513K

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 20
Shutter No
Flange 45x45 mm
Weight 32 g
Declaration of Conformity VDE

Appropriate accessories

Snap-in socket SCHUKO® 11513K

Fixing rack

Part no. 11254

for fixing of snap-in sockets on DIN rails
