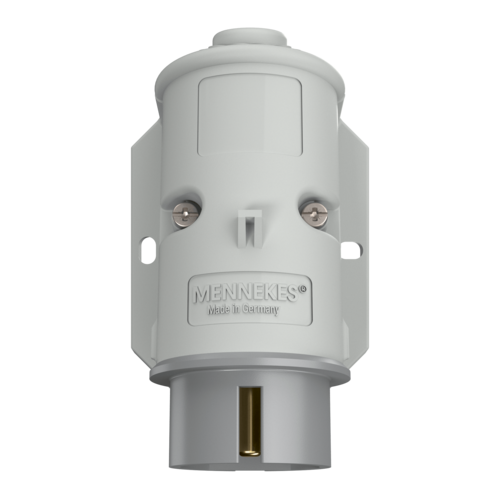

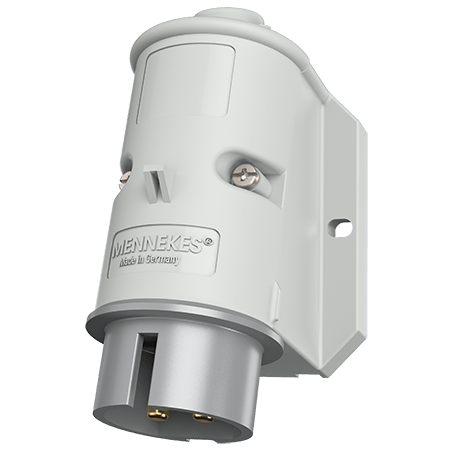

MENNEKES Wall mounted inlet 1967
MENNEKES Wall mounted inlet 1967 images3d

Wall mounted inlet 1967

Poles
Voltage
Clock position
  • screw terminals
  • external fixing
  • one cable entry at top and one blind cable entry (can be cut out) at the back side
  • Part no.1967
  • EAN4015394012900
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 1967

Ampere 16 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 159 g
Certifications EAC
CQC

Directives

Wall mounted inlet 1967

Appropriate accessories

Wall mounted inlet 1967

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
