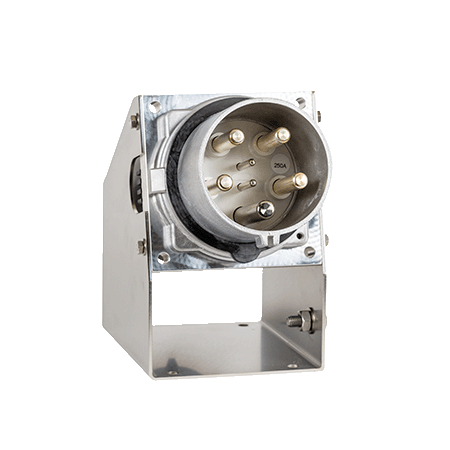

MENNEKES Wall mounted inlet 75256

Wall mounted inlet 75256

Ampere 200 A 250 A
  • EcoLine
  • aluminium enclosure
  • Screw terminals
  • seawater resistant products are available on request
  • Part no.75256
  • EAN4015394055662
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Wall mounted inlet 75256

Ampere 200 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 5950 g
Certifications EAC

Datasheets & Downloads

Wall mounted inlet 75256

Product infoWall mounted inlet 75256 PDF, 178 KB
CAD data STPWall mounted inlet 75256 ZIP, 2 MB
CAD data 3D DWGWall mounted inlet 75256 ZIP, 2 MB
Dimensional drawing portraitWall mounted inlet 75256 PNG, 72 KB
Dimensional drawing landscape formatWall mounted inlet 75256 PNG, 190 KB

Directives

Wall mounted inlet 75256

REACh
RoHS
