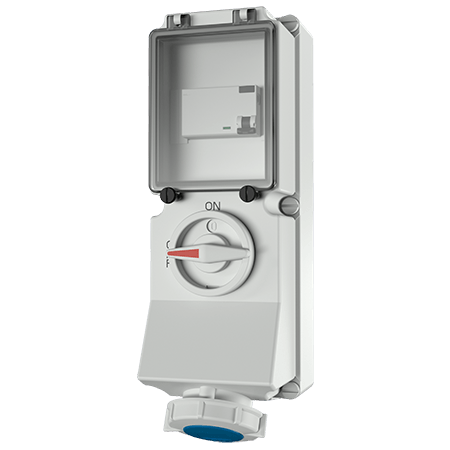

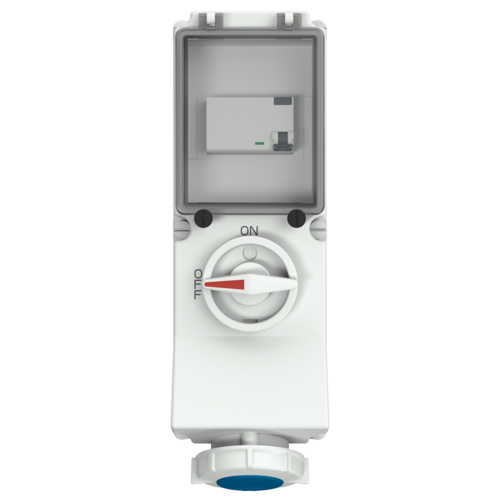

MENNEKES Wall mounted socket 7245
MENNEKES Wall mounted socket 7245 images3d

Wall mounted socket 7245

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • RCD (0.03A)
  • other leakage current ratings on request
  • sockets can be padlocked
  • Part no.7245
  • EAN4015394151098
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket 7245

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 2046 g
Certifications EAC
CQC

Directives

Wall mounted socket 7245
