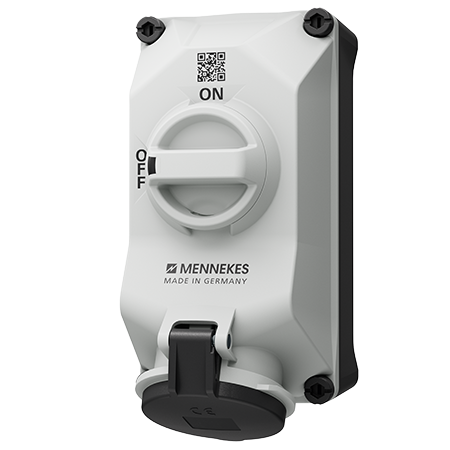

MENNEKES Wall mounted socket DUO 5603502G

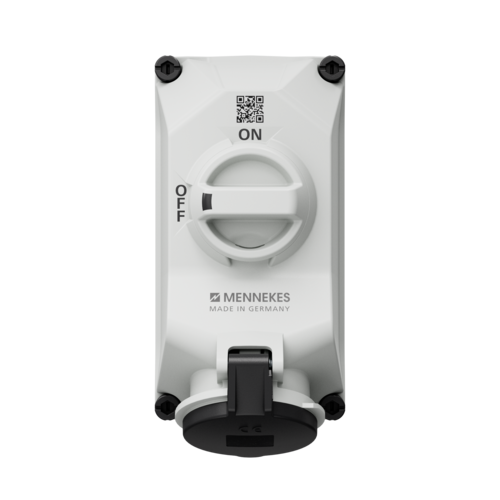

MENNEKES Wall mounted socket DUO 5603502G images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket DUO 5603502G

Ampere 16 A 32 A
  • screw terminals
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • sockets can be padlocked
  • Part no.5603502G
  • EAN4015394298625
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted socket DUO 5603502G

Ampere 32 A
Poles 5 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1423 g

Datasheets & Downloads

Wall mounted socket DUO 5603502G

Product infoWall mounted socket DUO 5603502G PDF, 1 MB
CAD data STPWall mounted socket DUO 5603502G ZIP, 3 MB
CAD data 3D DWGWall mounted socket DUO 5603502G ZIP, 8 MB
Mounting instructionsWall mounted socket DUO 5603502G PDF, 4 MB
Dimensional drawing portraitWall mounted socket DUO 5603502G PNG, 294 KB
Dimensional drawing landscape formatWall mounted socket DUO 5603502G PNG, 310 KB

Videos

Wall mounted socket DUO 5603502G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket DUO 5603502G

REACh
RoHS
