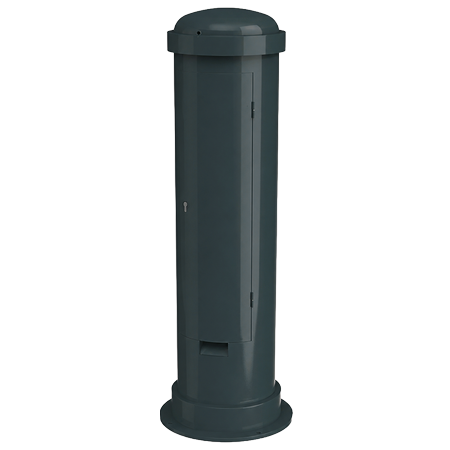

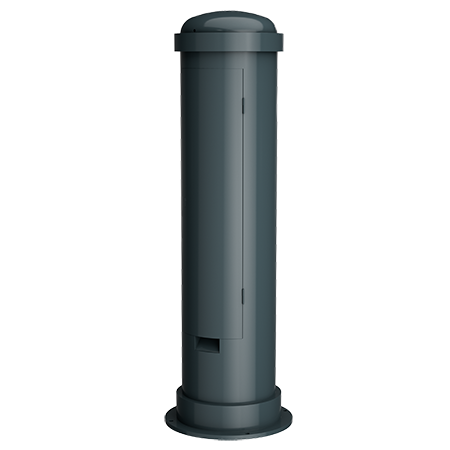

MENNEKES Power post enclosure 18502AG

Power post enclosure 18502AG

  • from steel tube
  • wall thickness 4.5 mm
  • hot-dip galvanised
  • powder-coated
  • colour: anthracite (RAL 7016)
  • hinged supply aperture with profile half cylinder lock
  • dimensions (H x Ø): 1400 x 325 mm (inside)
  • weight: approx. 95 kg
  • aperture at bottom: (H x W) 50 x 100 mm
  • fixing flange: Ø 450 mm
  • with 4 fixing holes 15 mm
  • for fixing to an existing fundament
  • Part no.18502AG
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Power post enclosure 18502AG

Directives

Power post enclosure 18502AG

Appropriate products

Power post enclosure 18502AG

MENNEKES Mounting plate for power post 6305047

Mounting plate for power post

Part no. 6305047

  • Enclosure material: Metal
  • Protection type: IP44
  • CEE 32 A, 5 p, 400 V: 1
  • CEE 16 A, 5 p, 400 V: 2
  • SCHUKO® 16 A, 230 V: 2
MENNEKES Mounting plate for power post 6304597

Mounting plate for power post

Part no. 6304597

  • Enclosure material: Metal
  • Protection type: IP44
  • CEE 63 A, 5 p, 400 V: 1
  • CEE 32 A, 5 p, 400 V: 1
  • CEE 16 A, 5 p, 400 V: 1
  • SCHUKO® 16 A, 230 V: 2
