MENNEKES

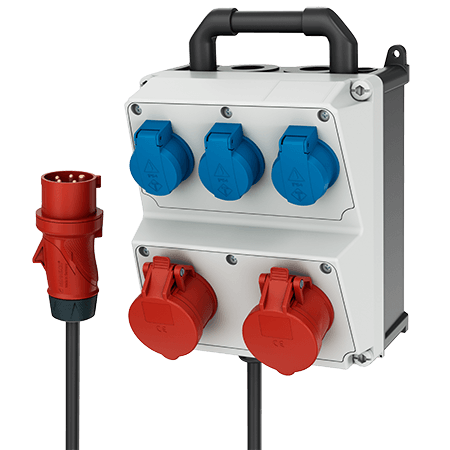

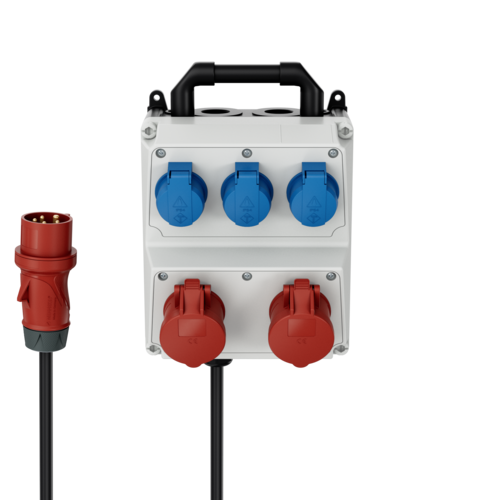

AMAXX® combination unit 920034

CEE 16 A, 5 p, 400 V
SCHUKO®
  • pre-wired for installation
  • hinged to the side
  • Part no.920034
  • EAN4015394222231
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 920034

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • 2 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type IP 44
Enclosure material Plastic
Weight 3560 g
Height 260 mm
Width 225 mm
Declaration of Conformity EAC
Storage receptacle combination D

Mounting instruction video

Please accept marketing-cookies to watch this video.

Video mounting instructions
