MENNEKES

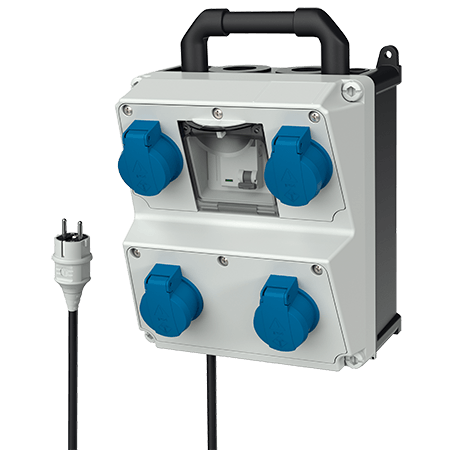

AMAXX® combination unit 920046

franz./belg. Norm
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.920046
  • EAN4015394223757
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 920046

French/Belgian standard 5
Fusing
  • 1 RCD 25 A, 2 p, 0.03 A
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F3G2.5 with NF-plug 16 A, 2 p+E, 230 V
Protection type IP44
Enclosure material Plastic
Weight 3180 g
Height 260 mm
Width 225 mm
Storage receptacle combination C

Mounting instruction video

Please accept marketing-cookies to watch this video.

Video mounting instructions

Appropriate accessories

AMAXX® combination unit 920046

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm
