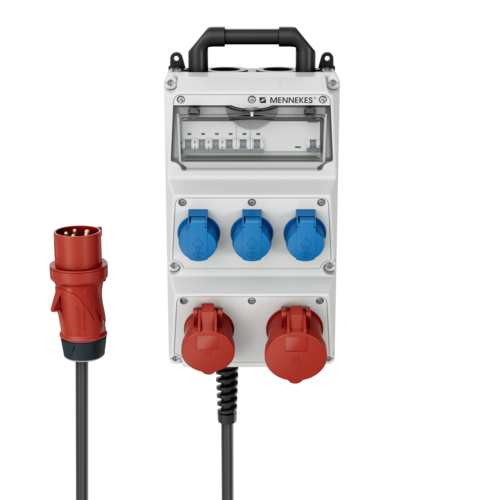

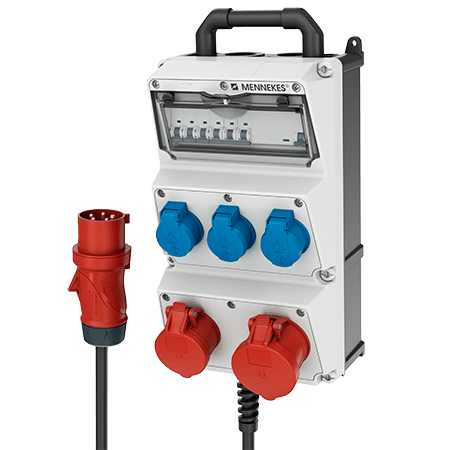

MENNEKES AMAXX® combination unit 930025
MENNEKES AMAXX® combination unit 930025 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 930025

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.930025
  • EAN4015394222262
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 930025

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 32 A
InA 32 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F5G4 with CEE-plug 32 A, 5 p, 400 V
Protection type IP44
Enclosure material Plastic
Weight 6860 g
Height 390 mm
Width 225 mm
Certifications EAC
Storage receptacle combination A

Videos

AMAXX® combination unit 930025

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 930025

Appropriate accessories

AMAXX® combination unit 930025

MENNEKES Weather shield 15682

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

MENNEKES Weather shield 15690

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm

MENNEKES CombiTOWER® 15678

CombiTOWER®

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

MENNEKES CombiTOWER® 15679

CombiTOWER®

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER® 15680

CombiTOWER®

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish

MENNEKES CombiTOWER® 15681

CombiTOWER®

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES Portable frame 15696

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® combination units with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Mounting unit 18444

Mounting unit

Part no. 18444

Hangable mounting unit, made from light metal, with holes for front and rearinstallation of sockets and combination units, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, dimensions (H x D x W): 535 x 233 x 348 mm, colour: white aluminium (RAL 9006)

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609
