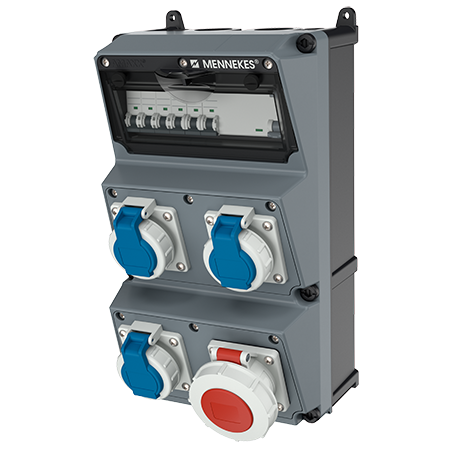

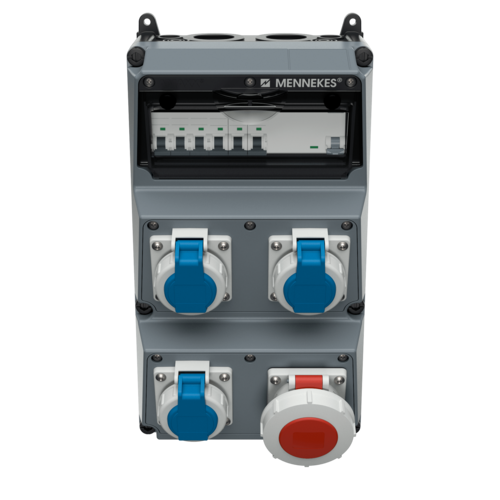

AMAXX® combination unit 930027

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • highly resistant to chemicals
  • highly heat resistant contact carrier and nickel plated contacts
  • pre-wired for installation
  • enclosure front cover grey RAL 7000
  • hinged to the side
  • fusing behind a transparent cover
  • Part no.930027
  • EAN4015394224013
  • Std. Pack. 1 Qty.

Technical specifications

AMAXX® combination unit 930027

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 100 A
InA 30 A
RDF 0.95
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP 67
Enclosure material Plastic, high resistance to chemicals
Weight 5580 g
Height 390 mm
Width 225 mm
Storage receptacle combination B

Appropriate accessories

AMAXX® combination unit 930027

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

more

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm

more

CombiTOWER®

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm

more

CombiTOWER®

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm

more

CombiTOWER®

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm

more

CombiTOWER®

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm

more

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® combination units with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

more

Mounting unit

Part no. 18444

Hangable mounting unit, made from light metal, with holes for front and rearinstallation of sockets and combination units, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, dimensions (H x D x W): 535 x 233 x 348 mm, colour: white aluminium (RAL 9006)

more

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

more

Cable gland

Part no. 990609

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

more

Cable gland

Part no. 990611

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

more

AMAXX® Membran-Kabelverschraubung

Part no. 990621

M 20 - Klemm-/Dichtbereich 6-13 mm, IP 67, schwarz RAL 9005, inkl. Verschlussstopfen

more

Wall mounted socket

Part no. 990627

black RAL 9005, incl. blanking plug, for cable from 16-28 mm

more
