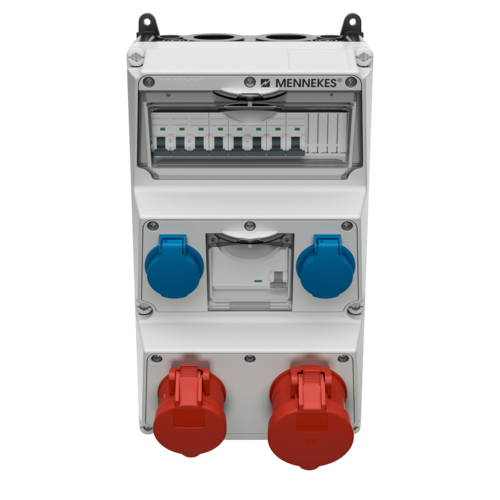

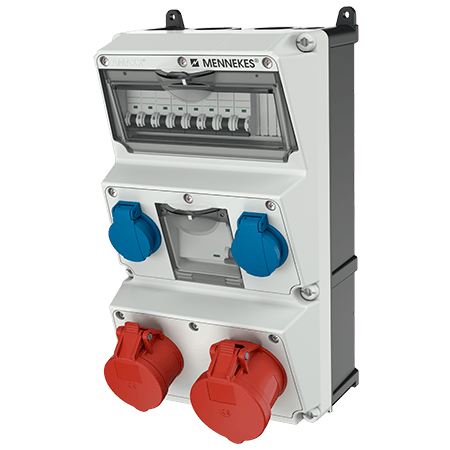

MENNEKES AMAXX® combination unit 930035
MENNEKES AMAXX® combination unit 930035 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® combination unit 930035

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
French/Belgian standard
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.930035
  • EAN4015394223764
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 930035

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
French/Belgian standard 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p+N, C
  • 1 MCB 16 A, 3 p+N, C
  • 2 MCB´s 16 A, 1 p+N, C
Connection/feeder cable
  • for 1 cable up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 5760 g
Height 390 mm
Width 225 mm
Certifications EAC
Storage receptacle combination D

Videos

AMAXX® combination unit 930035

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® combination unit 930035

Appropriate accessories

AMAXX® combination unit 930035

MENNEKES Weather shield 15682

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

MENNEKES Weather shield 15690

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm
