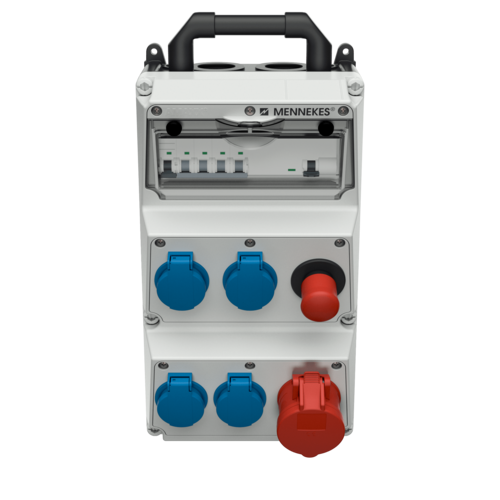

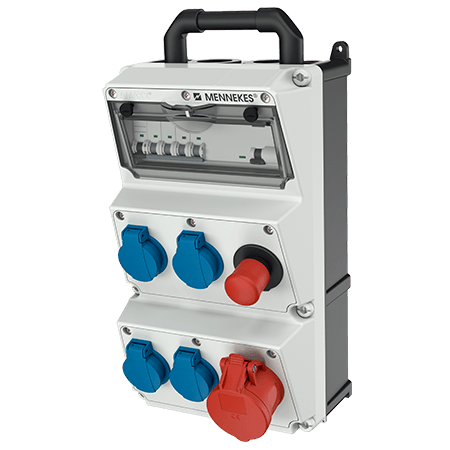

AMAXX® combination unit 931017

CEE 16 A, 5 p, 400 V
franz./belg. Norm
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.931017
  • EAN4015394286837
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® combination unit 931017

CEE 16 A, 5 p, 400 V 1
French/Belgian standard 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p+N, C
  • 1 MCB 16 A, 1 p+N, C
  • 1 off button
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP 44
Enclosure material Plastic
Weight 6000 g
Height 390 mm
Width 225 mm
Storage receptacle combination D
